Small Block Chevy Motown Cast Iron Block

Vehicle Info Needed

WORLD PRODUCTSPART NUMBER: 955-084010

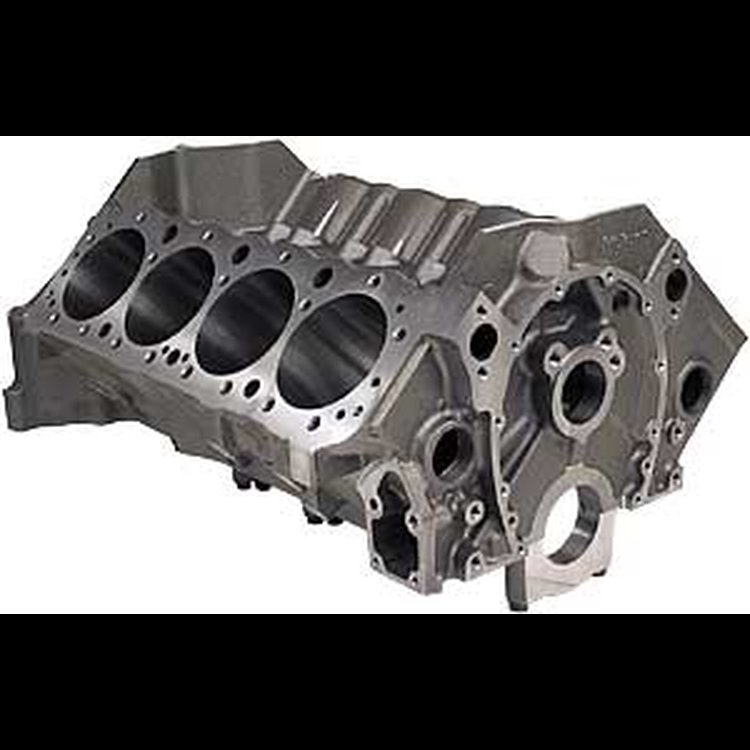

Small Block Chevy Motown Cast Iron Block

Name: Small Block Chevy Motown Cast Iron Block
Brand: WORLD PRODUCTS
SKU: 955-084010
Price: 3781.95 USD
Availability: InStock

^$3,781⁹⁵

Truck Freight

Ships on 09/11/2026

Lowest Price Guarantee

3.995 in. Bore
Nodular Iron Mains

Motown Cast Iron Engine Block

Small Block Chevy

350 Mains

3.990 in. Bore

Nodular Iron Splayed 4-Bolt Main Caps

Features

Material: Cast iron
Deck Height: 9.025 in. (standard Chevy)
Deck Thickness: .600 in. minimum
Cam Bearings: Standard Chevy
Camshaft Location: Stock
Lifter Bores: Indexed (stock .8437 in. bore)
Bore: 3.995 in. (hone to 4.000 in.)
Maximum Bore: 4.200 in.
Cylinder Wall Thickness: .250 in. @ 4.200 in. bore
Lubrication: Priority main oiling system
Filtration: Integral mount for spin-on filter
Oil Pan Rails: Solid stock width (can be clearanced for Strokers)
Crank Clearance: 4.000 in. stroke (with H-Beam steel rods)
Main Caps: Nodular iron 4-bolt (7/16 in.) with dowels
Fuel Pump: OE mount
Starter: OE mount
Motor Mounts: Front and side
Cylinder Head Holes: Blind tapped to prevent leaks
Weight: Approximately 200 lbs.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Small Block Chevy Replacement Blocks with Major Muscle

World Products Motown II Small Block Chevy Cast Iron Blocks are entirely manufactured to QS-9000 specs using only two fixturing operations (no tolerance stacking like factory blocks made on an assembly line). Compared to OE models, World’s Motown II engine blocks contain thicker cylinder walls, and the expanded water jackets help improve cooling. Each engine block includes one-inch thicker bulkheads (to provide ample support of the front and rear mains), bosses for front-feed oil systems, and rear dry-sump scavenging. Solid pan rails (standard width design) ensure proper sealing, and stock-type oil pans can be used.

Part TypeEngine Block

Product LineWorld Products Small Block Chevy Motown II Cast Iron Blocks

BrandWORLD PRODUCTS

Package Height16.0

Package Width23.0

Package Length25.0

Weight207.9 PG

Part CategoryPerformance Parts

Maximum Bore Diameter4.2 in (106.68 mm)

Engine Block Weight (Lbs.)190

Part FitmentSemi Universal

Deck Height9.025 in (229.235 mm)

ToolStroker Combinations

Vendor Part Number084010

Package Qty1

Package TypeEA
