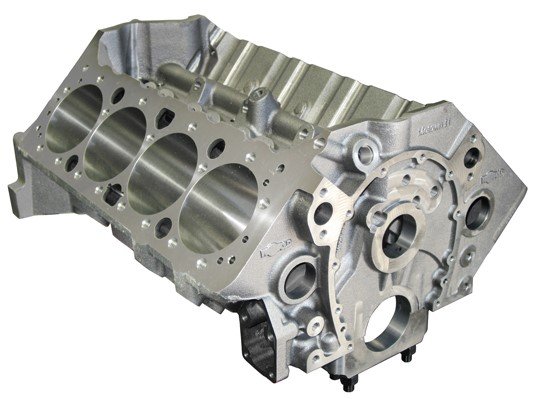

Motown II Small Block Chevy Cast Iron Block

Name: Motown II Small Block Chevy Cast Iron Block
Brand: WORLD PRODUCTS
SKU: 955-084125RC-904
Price: 4736.26 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

4.120 in. Bore
Billet Mains

Motown II Cast Iron Engine Block

Requires 50 mm Cam Bearings

Raised Cam: 0.134 in.

Lifter Bore: 0.904 in.

350 Mains w/4-Bolt Billet Splayed Caps

Siamesed Bore: 4.120 in.

Block Deck Height: 9.025 in. (Std. Chevy)

Small Block Chevy Oiling System Improvements

World Products 084125RC-904 Motown II Cast Iron Block Features:

0.134 in. raised cam bore that has been sized to accept a 50 mm roller cam bearing which will allow as much as a 4 in. stroke with 6 in. H-beam rods.
Bushed and indexed lifter bores sized at 0.904 in. provide accurate pushrod alignment and valvetrain stability.
350 Chevy diameter (0.2441 in.) billet steel 4 bolt splayed main bearing caps are located by dowel pins and a deep step design to allow for 700 HP plus in naturally aspirated or boosted applications.
Standard Chevy block deck height of 9.025 in. has been improved with a minimum of .600 in. thickness.
Siamese design cylinder bores sized at 4.125 in. eliminate the need for steam holes and can be bored to 4.185 in.

Small Block Chevy Replacement Blocks with Major Muscle

World Products Motown II Small Block Chevy Cast Iron Blocks are entirely manufactured to QS-9000 specs using only two fixturing operations (no tolerance stacking like factory blocks made on an assembly line). Compared to OE models, World’s Motown II engine blocks contain thicker cylinder walls, and the expanded water jackets help improve cooling. Each engine block includes one-inch thicker bulkheads (to provide ample support of the front and rear mains), bosses for front-feed oil systems, and rear dry-sump scavenging. Solid pan rails (standard width design) ensure proper sealing, and stock-type oil pans can be used.

Part TypeEngine Block

Product LineWorld Products Small Block Chevy Motown II Cast Iron Blocks

BrandWORLD PRODUCTS

Package Width210.0

Weight210.0 PG

Part CategoryPerformance Parts

Main Journal Type350 mains

Engine Block StyleAftermarket

Engine Block MaterialCast iron

QuantitySold individually

Raised Cam LocationYes

Freeze Plugs IncludedNo
