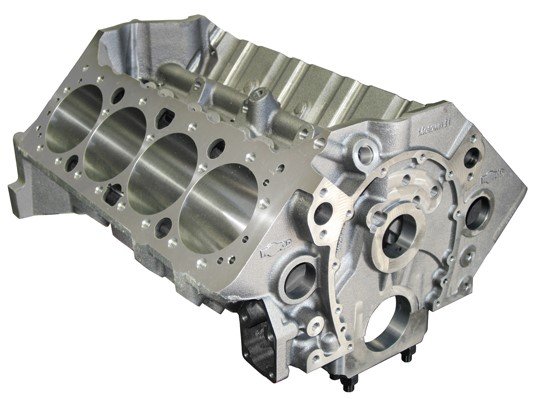

Motown II Small Block Chevy Cast Iron Block
Product Discontinued
WORLD PRODUCTSPART NUMBER: 955-084125RC

Motown II Small Block Chevy Cast Iron Block

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

4.120 in. Bore
Billet Mains
Motown II Cast Iron Engine Block
  • Requires 50 mm Cam Bearings
  • Raised Cam: 0.134 in.
  • Lifter Bores: OEM (Std. Chevy) Lifter Diameter
  • 350 Mains w/4-Bolt Billet Splayed Caps
  • Siamesed Bore: 4.120 in.
  • Block Deck Height: 9.025 in. (Std. Chevy)

    Small Block Chevy Oiling System Improvements

    World Products 084125RC Motown II Cast Iron Block Features:

    • 0.134 in. raised cam bore that has been sized to accept a 50 mm roller cam bearing which will allow as much as a 4 in. stroke with 6 in. H-beam rods.
    • Bushed and indexed lifter bores sized at OEM (Std. Chevy) diameter provide accurate pushrod alignment and valvetrain stability.
    • 350 Chevy diameter (0.2641 in.) billet steel 4 bolt splayed main bearing caps are located by dowel pins and a deep step design to allow for 700 HP plus in naturally aspirated or boosted applications.
    • Standard Chevy block deck height of 9.025 in. has been improved with a minimum of .600 in. thickness.
    • Siamese design cylinder bores sized at 4.125 in. eliminate the need for steam holes and can be bored to 4.185 in.
  • Part TypeEngine Block
    BrandWORLD PRODUCTS
    Package Width210.0
    Weight210.0 PG
    Part CategoryPerformance Parts
    Main Journal Type350 mains
    Engine Block StyleAftermarket
    Engine Block MaterialCast iron
    QuantitySold individually
    Raised Cam LocationYes
    Freeze Plugs IncludedNo
    Main Bolt Style4-Bolt Splayed
    Main Bearings IncludedNo
    Main Cap MaterialBillet steel
    Rear Main Seal Style2-piece
    Main Caps IncludedYes
    Finished Cylinder BoresNo
    Cam Bearings IncludedNo
    Part FitmentSemi Universal
    Main Cap Fasteners IncludedYes
    Package Qty1
    Package TypeEA
