Motown II Small Block Chevy Cast Iron Block
InfoVehicle Info Needed
WORLD PRODUCTSPART NUMBER: 955-084135RC-904

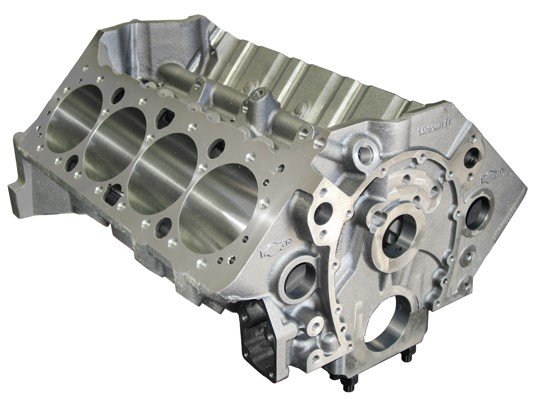

Motown II Small Block Chevy Cast Iron Block

$4,73626
Truck Freight
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

4.120 in. Bore
Billet Mains
Motown II Cast Iron Engine Block
  • Requires 50 mm Cam Bearings
  • Raised Cam: 0.134 in.
  • Lifter Bore: 0.904
  • 400 Mains w/4-Bolt Billet Splayed Caps
  • Siamesed Bore: 4.120 in.
  • Block Deck Height: 9.025 in. (Std. Chevy)

    Small Block Chevy Oiling System Improvements

    World Products 084135RC-904 Motown II Cast Iron Block Features:

    • 0.134 in. raised cam bore that has been sized to accept a 50 mm roller cam bearing which will allow as much as a 4 in. stroke with 6 in. H-beam rods.
    • Bushed and indexed lifter bores sized at 0.904 in. provide accurate pushrod alignment and valvetrain stability.
    • 400 Chevy diameter (0.2841 in.) billet steel 4 bolt splayed main bearing caps are located by dowel pins and a deep step design to allow for 700 HP plus in naturally aspirated or boosted applications.
    • Standard Chevy block deck height of 9.025 in. has been improved with a minimum of .600 in. thickness.
    • Siamese design cylinder bores sized at 4.125 in. eliminate the need for steam holes and can be bored to 4.185 in.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeEngine Block
    BrandWORLD PRODUCTS
    Package Width210.0
    Weight210.0 PG
    Part CategoryPerformance Parts
    Main Journal Type400 mains
    Engine Block StyleAftermarket
    Engine Block MaterialCast iron
    QuantitySold individually
    Raised Cam LocationYes
    Freeze Plugs IncludedNo
    Main Bolt Style4-Bolt Splayed
    Main Bearings IncludedNo
    Main Cap MaterialBillet steel
    Rear Main Seal Style2-piece
    Main Caps IncludedYes
    Finished Cylinder BoresNo
    Cam Bearings IncludedNo
    Part FitmentSemi Universal
    Main Cap Fasteners IncludedYes
    Package Qty1
    Package TypeEA
