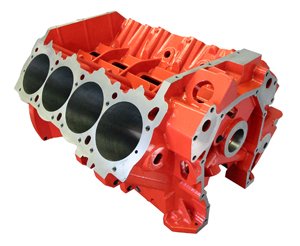

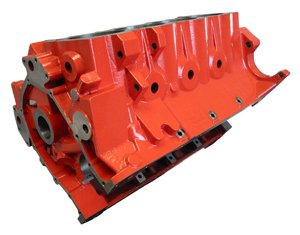

426/440 Aluminum BB-Chrysler Bare Engine Block Deck: 10.725

Name: 426/440 Aluminum BB-Chrysler Bare Engine Block Deck: 10.725
Brand: WORLD PRODUCTS
SKU: 955-088555
Price: 5606.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

426/440 Aluminum BB-Chrysler Bare Engine Block

Deck: 10.725
Bore: 4.490
Type: Wedge Heads and Mounts
Main Caps: Nodular, Cross Bolted

Race Prepped Blocks:
Let the experienced technicians at World do the groundwork with our Race-Prepped Blocks. Blocks are precision plate-honed, lifter bores honed,block is thoroughly washed, cam bearings and freeze plugsinstalled.You'll find this to be a HUGE time saver and a verycost-effective investment.

Features:

Dual bolt pattern bellhousing (Chrysler and GM).
Standard or +.250" raised cam locations available.
Can be machined for 60mm cam bearings in either location.
Lifter bores can be spread up to .100" and machined toaccommodate angles of 45 and 51 degrees.
Can use either standard screw-in oil pick up or 2-bolt flange design.
Oiling feeds rockers from both oil galleys instead of cam bearings.
Offered in either Hemispherical or Wedge configurations.

Technical Specifications
Material:	A357-T6 aircraft aluminum (optional Compacted Graphite)
Deck Heights:	10.725"
Deck Thickness:	.600" minimum
Cam Bearings:	Standard Chrysler
Main Bearings:	Standard Chrysler
Camshaft Location:	Stock or raised (+.250")
Lifter Bores:	Can be spread to .100'' and bored between 45 or 51°
Bore:	Available with 4.250'' and 4.500'' (4.600'' in CGI)
Maximum Bore:	4.625" CGI, 4.530" aluminum
Cylinder Wall Thickness:	(nominal .200" @ 4.600" bore)
Water Jackets:	Expanded for better cooling
Lubrication:	Priority main oiling system
Bellhousing:	Machined with both Chrysler and GM bolt patterns
Oil Pick-up:	Changed to 2-bolt flange mount; relocated for clearanceand provision for external oil pick-up
Crank Clearance:	Up to 4.750" crank with external oil pick-up
Main Caps:	Nodular iron - cross-bolted (first four)
Starter:	Engineered to clear all popular starters
Motor Mounts:	Availale with HEMI 0 or Wedge mounts
Cylinder Head Holes:	Configured for either HEMI or Wedge heads
