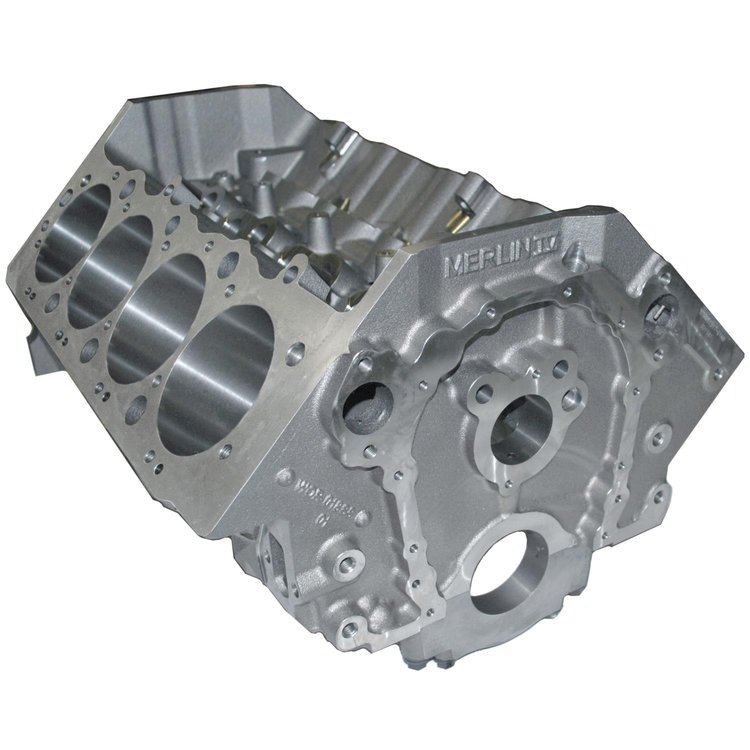

Merlin IV Big Block Chevy Cast Iron Engine Bare Block

Product Discontinued

WORLD PRODUCTSPART NUMBER: 955-091110

Merlin IV Big Block Chevy Cast Iron Engine Bare Block

Name: Merlin IV Big Block Chevy Cast Iron Engine Bare Block
Brand: WORLD PRODUCTS
SKU: 955-091110
Price: 3842.02 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

4.245 in. Cylinder Bore

Merlin IV Cast Iron Engine Block

Big Block Chevy

2-Piece Rear Main Seal

4.245" Bore

10.200" "Tall" Deck Height

Standard BBC Camshaft Bearing Journal

Standard BBC Lifter Bore

Nodular Iron Main Caps

Features:

High-Density Cast Iron Construction
Priority Main Oiling
Front Oil Inlet and Restrictor Provision
Bores to 4.625 in. max
Cylinder Walls 0.310 in. @ 4.600 in. Bore
Valley Accommodates OE Roller Lifters or Use +.300 in. Tall Aftermarket Lifters
Clearance for 4.375 in. Stroke - 9.800 in. Deck
Splayed 4-Bolt Main Caps with Dowels & Stepped Register, ARP Fasteners
2-Piece Rear Main Seal
Accepts Standard Big Block Chevy Components
OE-style Fuel Pump & Starter Mounts
Approximately 270 lbs
Rated to 1000+ Horsepower

Part TypeEngine Block

BrandWORLD PRODUCTS

Package Width270.0

Weight270.0 PG

Part CategoryPerformance Parts

Maximum Bore Diameter4.625 in (117.475 mm)

Engine Block Weight (Lbs.)260

Part FitmentSemi Universal

Deck Height10.2 in (259.08 mm)

ToolStroker Combinations

Package Qty1

Package TypeEA
