Merlin IV Big Block Chevy Cast Iron Engine Bare Block
Product Discontinued
WORLD PRODUCTSPART NUMBER: 955-095010-55

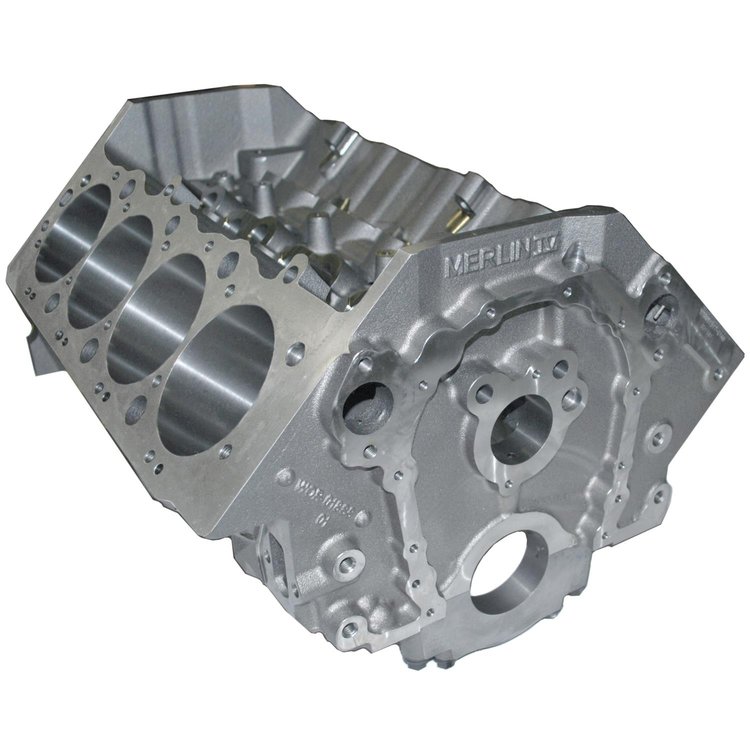

Merlin IV Big Block Chevy Cast Iron Engine Bare Block

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

4.495 in. Cylinder Bore
Merlin IV Cast Iron Engine Block
  • Big Block Chevy
  • 2-Piece Rear Main Seal
  • 4.495 in. Bore
  • 9.800 in. Deck Height
  • 55 mm Cam Journal
  • .904 in. Lifter Bore
  • Billet Splayed Main Caps

    Features:

    • High-Density Cast Iron Construction
    • Priority Main Oiling
    • Front Oil Inlet and Restrictor Provision
    • Bores to 4.625 in. max
    • Cylinder Walls 0.310 in. @ 4.600 in. Bore
    • Valley Accommodates +.300 in. Tall Aftermarket Lifters
    • Clearance for 4.375 in. Stroke - 9.800 in. Deck
    • Splayed 4-Bolt Main Caps with Dowels & Stepped Register, ARP Fasteners
    • 2-Piece Rear Main Seal
    • OE-style Fuel Pump & Starter Mounts
    • 270 lbs.
    • 55 mm cam does not require lifter bushings due to relocation of .500 oil gallery
    • Part TypeEngine Block
    BrandWORLD PRODUCTS
    Package Width270.0
    Weight270.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number095010-55
    Package Qty1
    Package TypeEA
