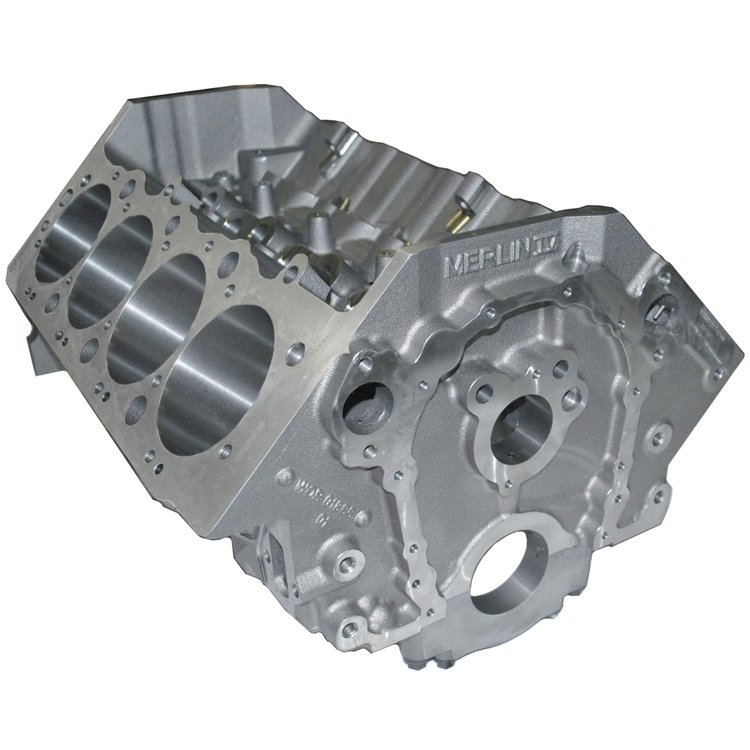

Merlin IV Big Block Chevy Cast Iron Engine Bare Block

Name: Merlin IV Big Block Chevy Cast Iron Engine Bare Block
Brand: WORLD PRODUCTS
SKU: 955-095010
Price: 4645.49 USD
Availability: InStock

^$4,645⁴⁹

Truck Freight

Ships on 09/14/2026

Lowest Price Guarantee

4.495 in. Cylinder Bore

Merlin IV Cast Iron Engine Block

Big Block Chevy

2-Piece Rear Main Seal

4.495 in. Bore

9.800 in. Deck Height

Standard Cam Journal & Lifter Bore

Billet Splayed Main Caps

Features:

High-Density Cast Iron Construction
Priority Main Oiling
Front Oil Inlet and Restrictor Provision
Bores to 4.625 in. max
Cylinder Walls 0.310 in. @ 4.600 in. Bore
Valley Accommodates OE Roller Lifters or Use +.300 in. Tall Aftermarket Lifters
Clearance for 4.375 in. Stroke - 9.800 in. Deck
Splayed 4-Bolt Main Caps with Dowels & Stepped Register, ARP Fasteners
2-Piece Rear Main Seal
2.120 in. Standard Cam Bearing Bore
OE-style Fuel Pump & Starter Mounts
270 lbs.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeEngine Block

BrandWORLD PRODUCTS

Package Width270.0

Weight270.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number095010

Package Qty1

Package TypeEA

No Questions

No Reviews
