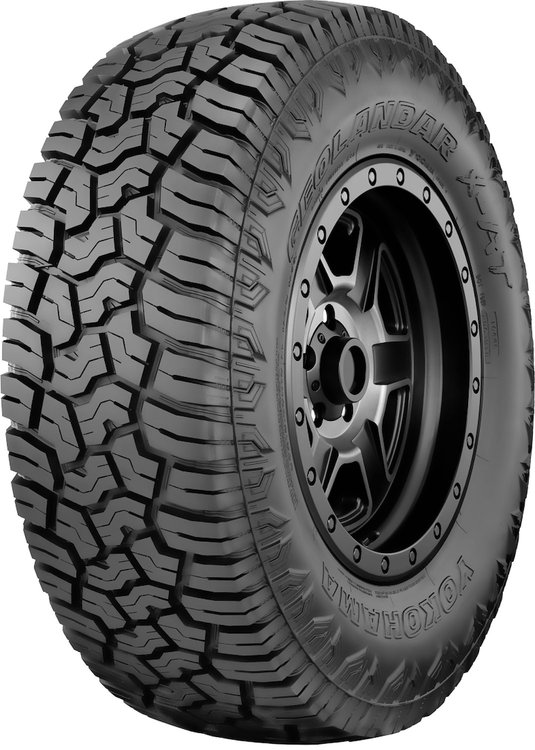

110116006 GEOLANDAR X-AT Tire, LT265/70R17 [Blackwall Sidewall]

Wheel Not Included

InfoVehicle Info Needed
YOKOHAMA TIREPART NUMBER: 817-110116006

110116006 GEOLANDAR X-AT Tire, LT265/70R17 [Blackwall Sidewall]

$30699
More than 10 available
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

GEOLANDAR X-AT
17 in. Diameter
GEOLANDAR X-AT Tire
  • Size: LT265/70R17
  • Load Index: 121/118
  • Speed Rating: Q
  • Sidewall: Blackwall
  • Sold Individually

    Yokohama GEOLANDAR X-AT tires are engineered for trucks, Jeeps, and off-road-capable SUVs that need rugged all-terrain capability. Built around hybrid all-terrain traction, sidewall protection, and highway stability, this tire family delivers a confident JEGS-ready upgrade for drivers who want trusted Yokohama engineering, strong road control, and application-focused tire performance.


    How to Read My Sidewall

    Yokohama GEOLANDAR X-AT Features:

    • GEO-SHIELD technology uses multiple sidewall plies, a high turn-up carcass, and a full nylon cap to improve durability and puncture resistance in demanding off-road conditions.
    • Dual sidewall protectors help guard the tire against impact damage and punctures when driving over rocks, ruts, and rough terrain.
    • HD-2 off-road compound is engineered for long tread life while improving cut and chip resistance during trail and mixed-surface use.
    • Elliptical contact area helps balance off-road traction with long, even wear by supporting a flatter, more consistent footprint.
    • Five-pitch block variation and ZigZag grooves help reduce pattern and road noise for a quieter, more comfortable on-road ride.
    • Aggressive angular center blocks increase tread strength and grip when traction demands are high.
    • Combination grooves pair sipes with narrow grooves on each tread block to improve traction on wet roads, snow, and slick rock surfaces.
    • Dynamic shoulder blocks create additional biting edges while helping promote mud and stone ejection.
    • Designed for crossovers, SUVs, and trucks that need off-road durability without sacrificing on-road comfort.
    • All-season tire engineered for peak-to-pavement use across paved roads, rugged trails, wet surfaces, snow, and slick rock.

    Yokohama GEOLANDAR X-AT Notes:

    • Backed by up to a 50,000-mile Limited Treadwear Warranty on Euro-metric sizes and a 45,000-mile Limited Treadwear Warranty on LT-metric sizes.
    • Includes Yokohama's 30-day satisfaction guarantee when purchased through eligible authorized channels.
    • Warranty coverage applies to normal highway service and excludes commercial applications, neglect, mistreatment, improper application, road hazard damage, racing, and special applications.
    • For staggered fitments that cannot be rotated, the mileage warranty for the rear tires may be reduced to half of the published warranty.
    • Replacement tires used on EVs may have lower mileage warranty coverage unless branded with the EV mark on the sidewall.
    • Yokohama GEOLANDAR X-AT Extreme All-Terrain Tires Deliver Aggressive Off-Road Capability & Quiet Highway Comfort

      The Yokohama GEOLANDAR X-AT is an extreme all-terrain tire engineered for trucks, crossovers, and SUVs, delivering rugged off-road traction without compromising everyday on-road comfort and quiet highway performance. Designed for adventure-driven drivers, the GEOLANDAR X-AT features an aggressive tread pattern with durable sidewall protection, stone ejectors, and GEO-SHIELD construction technology to enhance durability, cut resistance, and off-road confidence across mud, dirt, rocks, and gravel. Its innovative dual sidewall design allows drivers to choose between two distinct sidewall appearances for a customizable aggressive look, while the optimized tread pitch sequence helps reduce road noise for a smoother, quieter ride than traditional mud terrain tires. Built to handle everything from daily commuting to extreme trail exploration, the Yokohama GEOLANDAR X-AT offers the perfect balance of off-road strength, long-lasting durability, and refined all-terrain versatility.

    Part TypeTire
    Product LineYokohama GEOLANDAR X-AT All-Terrain Tires
    BrandYOKOHAMA TIRE
    Package Height10.07
    Package Width31.61
    Package Length31.61
    Weight55.8 PG
    Part CategoryReplacement Parts
    Speed RatingQ
    Load RangeE
    Section Width265 mm
    Max Load Single3195 lbs.
    Run-Flat TechnologyNo
    Tube RequiredNo
    Dot-ApprovedYes
    Wheel Diameter17 in.
    Studdable Winter TireNo
    Tire SizeLT265/70R17
    Tire Weather UsageAll-Season
    Minimum Recommended Wheel Width7 in.
    Tread Depth17/32nds in.
    Tread Width8.6 in.
    Tire TypeAll-Terrain
    Tire Diameter32 in.
    Sidewall StyleBlackwall
    DirectionalNo
    Aspect Ratio70
    Asymmetrical Tread PatternNo
    Tire ConstructionRadial
    Stiff SidewallYes
    Severe Snow Rated (3pmsf)No
    Part FitmentUniversal
    Maximum Recommended Wheel Width8.5 in.
    Maximum Inflation Pressure80 psi
    Vendor Part Number110116006
    Package Qty1
    Package TypeEA
