![110116095 GEOLANDAR X-AT Tire, LT285/55R22 [Blackwall Sidewall]](https://www.jegs.com/images/mini_750/800/817/817-110116095.jpg)
YOKOHAMA TIREPART NUMBER: 817-110116095

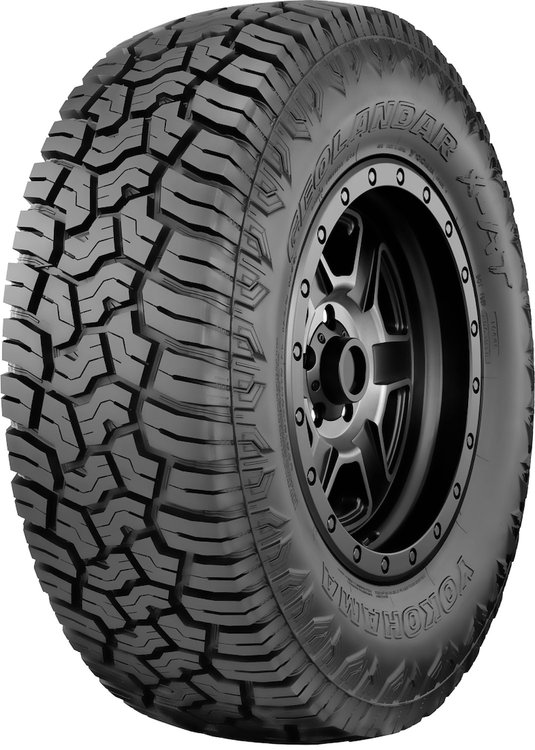

110116095 GEOLANDAR X-AT Tire, LT285/55R22 [Blackwall Sidewall]
$49299
More than 10 availableGEOLANDAR X-AT
22 in. Diameter
22 in. Diameter
GEOLANDAR X-AT TireSize: LT285/55R22 Load Index: 124/121 Speed Rating: Q Sidewall: Blackwall Sold Individually
How to Read My Sidewall
Yokohama GEOLANDAR X-AT tires are engineered for trucks, Jeeps, and off-road-capable SUVs that need rugged all-terrain capability. Built around hybrid all-terrain traction, sidewall protection, and highway stability, this tire family delivers a confident JEGS-ready upgrade for drivers who want trusted Yokohama engineering, strong road control, and application-focused tire performance.
How to Read My Sidewall
Yokohama GEOLANDAR X-AT Features:
- GEO-SHIELD technology uses multiple sidewall plies, a high turn-up carcass, and a full nylon cap to improve durability and puncture resistance in demanding off-road conditions.
- Dual sidewall protectors help guard the tire against impact damage and punctures when driving over rocks, ruts, and rough terrain.
- HD-2 off-road compound is engineered for long tread life while improving cut and chip resistance during trail and mixed-surface use.
- Elliptical contact area helps balance off-road traction with long, even wear by supporting a flatter, more consistent footprint.
- Five-pitch block variation and ZigZag grooves help reduce pattern and road noise for a quieter, more comfortable on-road ride.
- Aggressive angular center blocks increase tread strength and grip when traction demands are high.
- Combination grooves pair sipes with narrow grooves on each tread block to improve traction on wet roads, snow, and slick rock surfaces.
- Dynamic shoulder blocks create additional biting edges while helping promote mud and stone ejection.
- Designed for crossovers, SUVs, and trucks that need off-road durability without sacrificing on-road comfort.
- All-season tire engineered for peak-to-pavement use across paved roads, rugged trails, wet surfaces, snow, and slick rock.
Yokohama GEOLANDAR X-AT Notes:
- Backed by up to a 50,000-mile Limited Treadwear Warranty on Euro-metric sizes and a 45,000-mile Limited Treadwear Warranty on LT-metric sizes.
- Includes Yokohama's 30-day satisfaction guarantee when purchased through eligible authorized channels.
- Warranty coverage applies to normal highway service and excludes commercial applications, neglect, mistreatment, improper application, road hazard damage, racing, and special applications.
- For staggered fitments that cannot be rotated, the mileage warranty for the rear tires may be reduced to half of the published warranty.
- Replacement tires used on EVs may have lower mileage warranty coverage unless branded with the EV mark on the sidewall.
Part TypeTire
BrandYOKOHAMA TIRE
Package Height11.43
Package Width34.34
Package Length34.34
Weight64.2 PG
Part CategoryReplacement Parts
Speed RatingQ
Load RangeE
Section Width285 mm
Max Load Single3525 lbs.
Run-Flat TechnologyNo
Tube RequiredNo
Dot-ApprovedYes
Wheel Diameter22 in.
Studdable Winter TireNo
Tire SizeLT285/55R22
Tire Weather UsageAll-Season
Minimum Recommended Wheel Width8.5 in.
Tread Depth18/32nds in.
Tread Width9.5 in.
Tire TypeAll-Terrain
Tire Diameter34.6 in.
Sidewall StyleBlackwall
DirectionalNo
Aspect Ratio55
Asymmetrical Tread PatternNo
Tire ConstructionRadial
Stiff SidewallYes
Severe Snow Rated (3pmsf)No
Part FitmentUniversal
Maximum Recommended Wheel Width10 in.
Maximum Inflation Pressure80 psi
Vendor Part Number110116095
Package Qty1
Package TypeEA
