![110117111 GEOLANDAR A/T XD Tire, LT285/70R17 [Blackwall Sidewall]](https://www.jegs.com/images/mini_750/800/817/817-110117111.jpg)
YOKOHAMA TIREPART NUMBER: 817-110117111

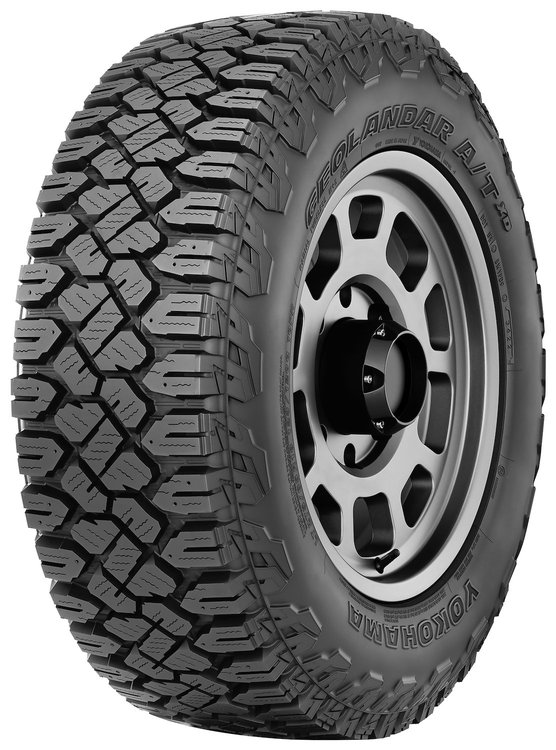

110117111 GEOLANDAR A/T XD Tire, LT285/70R17 [Blackwall Sidewall]
$31999
More than 10 availableGEOLANDAR A/T XD
17 in. Diameter
17 in. Diameter
GEOLANDAR A/T XD TireSize: LT285/70R17 Load Index: 121/118 Speed Rating: Q Sidewall: Blackwall Sold Individually
How to Read My Sidewall
Yokohama GEOLANDAR A/T XD tires are engineered for heavy-duty pickups, work trucks, and commercial light trucks that need commercial-duty all-terrain capability. Built around cut/chip resistance, off-road traction, and loaded-truck durability, this tire family delivers a confident JEGS-ready upgrade for drivers who want trusted Yokohama engineering, strong road control, and application-focused tire performance.
How to Read My Sidewall
Yokohama GEOLANDAR A/T XD Features:
- GEO-SHIELD technology and sidewall armor provide protection against impacts and punctures on jobsites and rough terrain.
- All-weather compound is engineered to tackle extreme winter conditions while maintaining all-season performance.
- Severe Snow Service Rating [3PMSF] supports winter traction in qualifying sizes.
- Durable tread package is built for long tread life without sacrificing all-weather capability.
- Advanced compound improves cut and chip resistance in harsh commercial and off-road conditions.
Yokohama GEOLANDAR A/T XD Notes:
- Commercial-grade extreme all-terrain tire for work trucks and demanding on/off-road use.
- Includes Yokohama's 30-day satisfaction guarantee when purchased through eligible authorized channels.
- Severe Snow Service Rating [3PMSF] indicates added winter capability, but it does not replace dedicated winter tire requirements where mandated.
- Commercial-grade use should follow the published load rating, inflation pressure, and service application for the vehicle.
- Warranty coverage applies to normal highway service and excludes road hazard damage, racing or special applications, improper application, neglect, and mistreatment.
Part TypeTire
BrandYOKOHAMA TIRE
Package Height10.75
Package Width32.71
Package Length32.71
Weight61.12 PG
Part CategoryReplacement Parts
Speed RatingQ
Load RangeE
Section Width285 mm
Max Load Single3195 lbs.
Run-Flat TechnologyNo
Tube RequiredNo
Dot-ApprovedYes
Wheel Diameter17 in.
Studdable Winter TireNo
Tire SizeLT285/70R17
Tire Weather UsageAll-Weather
Minimum Recommended Wheel Width7.5 in.
Tread Depth19/32nds in.
Tread Width9.4 in.
Tire TypeAll-Terrain
Tire Diameter32.8 in.
Sidewall StyleBlackwall
DirectionalNo
Aspect Ratio70
Tire SpecialtyCommercial
Asymmetrical Tread PatternNo
Tire ConstructionRadial
Stiff SidewallYes
Severe Snow Rated (3pmsf)Yes
Part FitmentUniversal
Maximum Recommended Wheel Width9.5 in.
Maximum Inflation Pressure80 psi
Vendor Part Number110117111
Package Qty1
Package TypeEA
