![110133312 GEOLANDAR M/T G003 Tire, LT245/75R16 [Blackwall Sidewall]](https://www.jegs.com/images/mini_750/800/817/817-110133312.jpg)
YOKOHAMA TIREPART NUMBER: 817-110133312

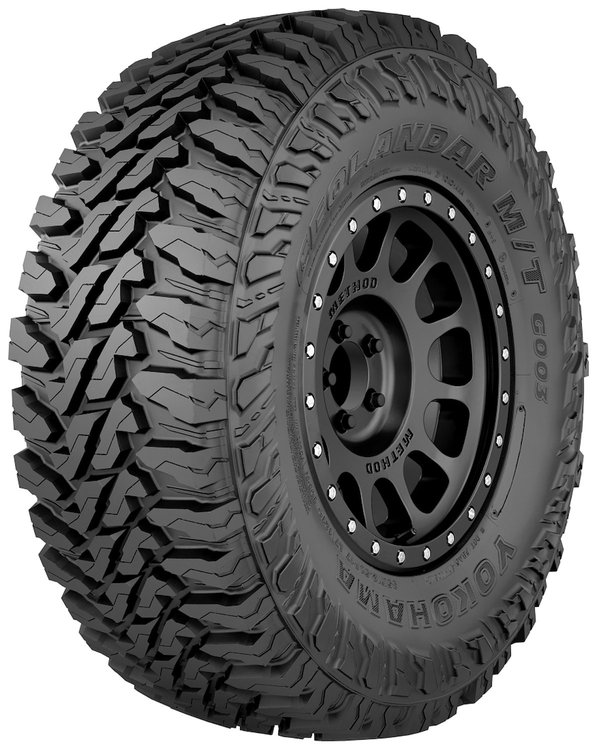

110133312 GEOLANDAR M/T G003 Tire, LT245/75R16 [Blackwall Sidewall]
$24999
GEOLANDAR M/T G003
16 in. Diameter
16 in. Diameter
GEOLANDAR M/T G003 TireSize: LT245/75R16 Load Index: 120/116 Speed Rating: Q Sidewall: Blackwall Sold Individually
How to Read My Sidewall
Yokohama GEOLANDAR M/T G003 tires are engineered for off-road trucks, Jeeps, SUVs, and SXS applications that need mud-terrain capability. Built around mud traction, rock-ready durability, and aggressive off-road bite, this tire family delivers a confident JEGS-ready upgrade for drivers who want trusted Yokohama engineering, strong road control, and application-focused tire performance.
How to Read My Sidewall
Yokohama GEOLANDAR M/T G003 Features:
- Innovative tread pattern and triple-polymer compound provide outstanding off-road grip.
- GEO-SHIELD construction is engineered to withstand harsh trail punishment.
- Advanced pitch variation contributes to a quieter and more comfortable highway ride.
- High-density triple-polymer compound and wide, flat profile combine for strong wear performance.
- Expanded size range includes options optimized for side-by-sides and UTV applications.
- Aggressive mud-terrain tread blocks help bite through mud, rocks, and loose surfaces.
Yokohama GEOLANDAR M/T G003 Notes:
- Mud-terrain tire designed for trucks, SUVs, and selected side-by-side or UTV sizes.
- Includes Yokohama's 30-day satisfaction guarantee when purchased through eligible authorized channels.
- Warranty coverage applies to normal highway service and excludes road hazard damage, racing or special applications, improper application, neglect, and mistreatment.
Part TypeTire
BrandYOKOHAMA TIRE
Package Height9.16
Package Width30.47
Package Length30.47
Weight48.3 PG
Part CategoryReplacement Parts
Speed RatingQ
Load RangeE
Section Width245 mm
Max Load Single3042 lbs.
Run-Flat TechnologyNo
Tube RequiredNo
Dot-ApprovedYes
Wheel Diameter16 in.
Studdable Winter TireNo
Tire SizeLT245/75R16
Tire Weather UsageAll-Season
Minimum Recommended Wheel Width6.5 in.
Tread Depth17/32nds in.
Tread Width7.8 in.
Tire TypeMud-Terrain
Tire Diameter30.5 in.
Sidewall StyleBlackwall
DirectionalNo
Aspect Ratio75
Asymmetrical Tread PatternYes
Tire ConstructionRadial
Stiff SidewallYes
Severe Snow Rated (3pmsf)No
Part FitmentUniversal
Maximum Recommended Wheel Width8 in.
Maximum Inflation Pressure80 psi
Vendor Part Number110133312
Package Qty1
Package TypeEA
