Product Discontinued
ZONE OFFROADPART NUMBER: 981-C39N

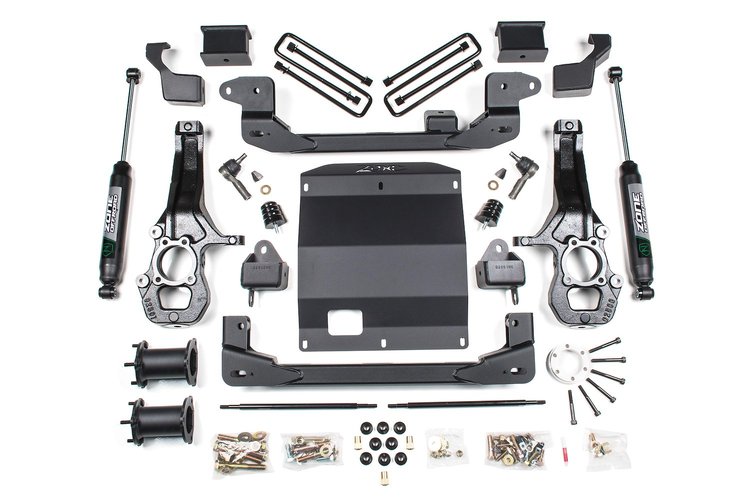

ZONC39N Zone 5.5" Suspension Lift kit for 2015-2022 Chevy/GMC Colorado/Canyon
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
- Zone 5.5" Suspension Lift kit
- 2015-2022 Chevy/GMC Colorado/Canyon
- Nitro Series Shocks
Zone Offroad ZONC39N Features:
To properly lift the Colorado/Canyon suspension 5.5", we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5" of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4" of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.
Part TypeSuspension Lift Kit
BrandZONE OFFROAD
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part NumberZONC39N
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
