Edelbrock 29085 - Edelbrock Victor Series EFI Intake Manifolds

Edelbrock #350-29085

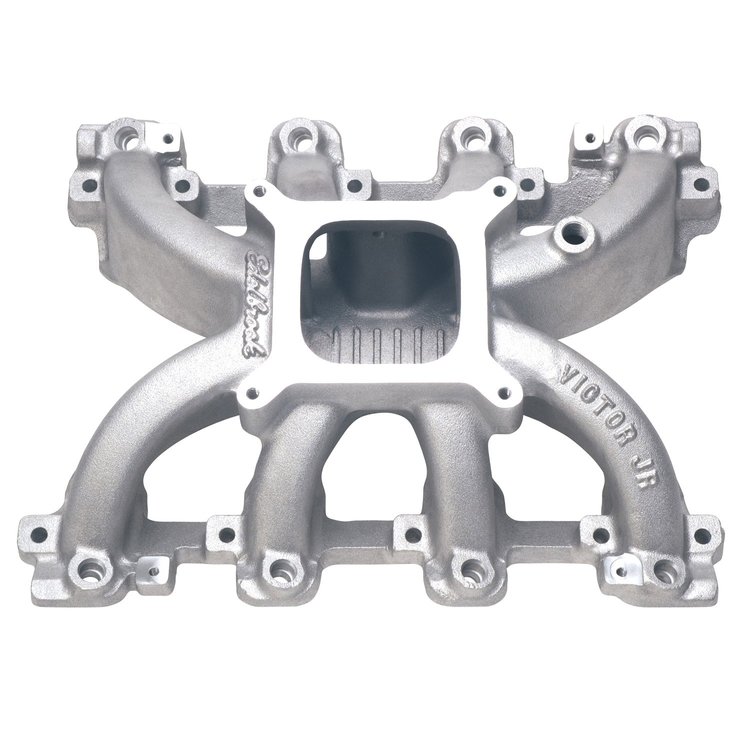

Victor Jr. LS1 EFI Intake Manifold

Chevy LS1

Standard 4-bbl Square Bore Throttle Body Flange

3500-7500 RPM Range

Installation Instructions for Edelbrock 29085 - Edelbrock Victor Series EFI Intake Manifolds

Share |

Complete list of Edelbrock Victor Series EFI Intake Manifolds

Details
Overview
Accessories

Edelbrock 29085 - Edelbrock Victor Series EFI Intake Manifolds Details

Chevy LS1

This high-rise single plane intake is capable of supporting up to 600 hp. Like our Performer RPM LS1 intake, the Victor Jr. LS1 EFI accepts a standard flange throttle body. Includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Most applications will require hood modification.

Installation Notes:

Use Fuel Rail Kit p/n 350-3638 and Bosch injectors.

Port exit dimensions: 0.98'' x 2.74''

Distance from bolt hole centerline to port roof 1.39''; to port floor 1.35''

Carb pad height = 4.95'' with 0° carb angle.

Recommended Intake Gasket: Uses LS1/LS6 style individual port O-ring seals. Fel-Pro p/n 375-MS92438

Technical Note

Edelbrock LS1 Timing Control Module p/n 350-91238 or MSD p/n 121-6010 ignition controller works on LS1 24x reluctor wheel (crank trigger) applications only;

LS2 applications with 58x reluctor (crank trigger) requires MSD p/n 121-6012 ignition controller.

LS1 (24x) applications can be recognized by the rear mounted cam position sensor (black in color), while LS2 (58x) cam sensor is mounted in the timing cover and is gray in color.

Crankshaft sleeve from Hughes Performance p/n 512-HP3795 and Flexplate p/n 512-HP4004 is recommended when using a TH350, TH400 or 700R4 on a LS1.

Edelbrock Victor Series EFI Intake Manifolds are Single-plane, high-rise intakes designed for maximum race-winning power at higher engine speeds. Edelbrock engineers work in conjunction with leading engine builders from all forms of competition to design manifolds compatible with the latest technology. Victor manifolds are available for single or multiple carburetor set-ups. See individual listings for complete information
