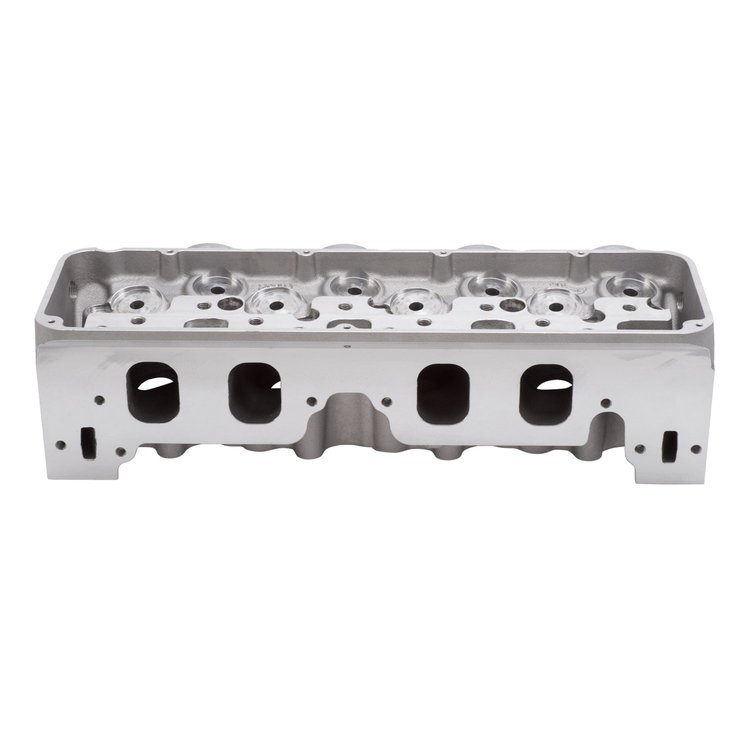

Edelbrock Pro Port Big Victor 12 Degree Cylinder Head for Big Block Chevy
350-618269
Product Q&A
View Now
Big Victor 12° Aluminum Cylinder Heads
) |
| Combustion Chamber Size: | -- |
| Intake Port Entry: | 1.53'' x 2.14" |
| Exhaust Port Exit: | 1.84'' x 1.50'' |
| Valve Sizes: | 2.45'' Intake / 1.85'' Exhaust (These are the maximum allowable size for each valve; these maximum sizes may not be used together) |
| Valve Pierce Points (X, Y): | -0.854'', 0.455'' Intake 1.120'', -0.420'' Exhaust Coordinates provided are cylinders 1, 3, 6, 8. Invert ''X'' value for cylinders 2, 4, 5, 7. |
| Valve Spacing: | -- |
| Valve Guides: | Included |
| Valve Seats: | -- |
| Valve Angle: | 12° |
| HIP Processed: | Yes |
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
