AUTO METERPART NUMBER: 105-5427

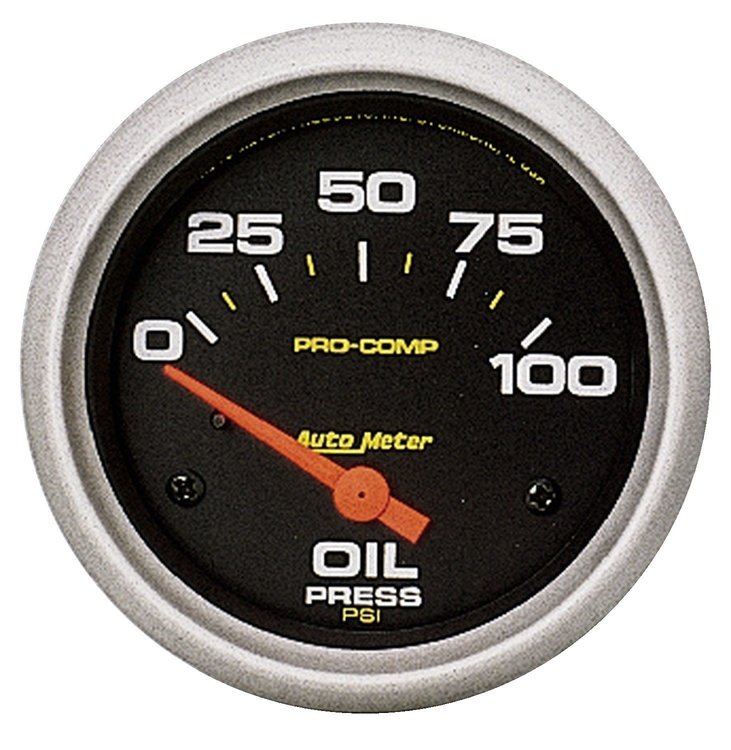

Pro-Comp Oil Pressure Gauge 2-5/8" electrical
$9999
3 left in stockOil Pressure Gauges
- Pro-Comp Oil Pressure Gauge
- 2-5/8" electrical
- 0-100 psi
1/8' electric sender and 1/4' NPT adapter/fitting included - Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Quite possibly the most critical vital to monitor, engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world's best competition instruments, this meter movement has been the engine powering the machine that sets the benchmark. A single wire, 1/8" NPT oil pressure sender is included.
Part TypeOil Pressure Gauge
BrandAUTO METER
Package Height5.3
Package Width5.6
Package Length5.7
Weight1.0 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Gauge Size (Mm)67.00 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
Sweep90 degree sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Pro-Comp
Gauge Number ColorWhite
Lighting TypeIncandescent
Gauge TypeOil Pressure
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Pressure0-100 PSI
Dial (Face Color)Black
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-100
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5427
Package Qty1
Package TypeEA
