Vehicle Info NeededAUTO METERPART NUMBER: 105-6003

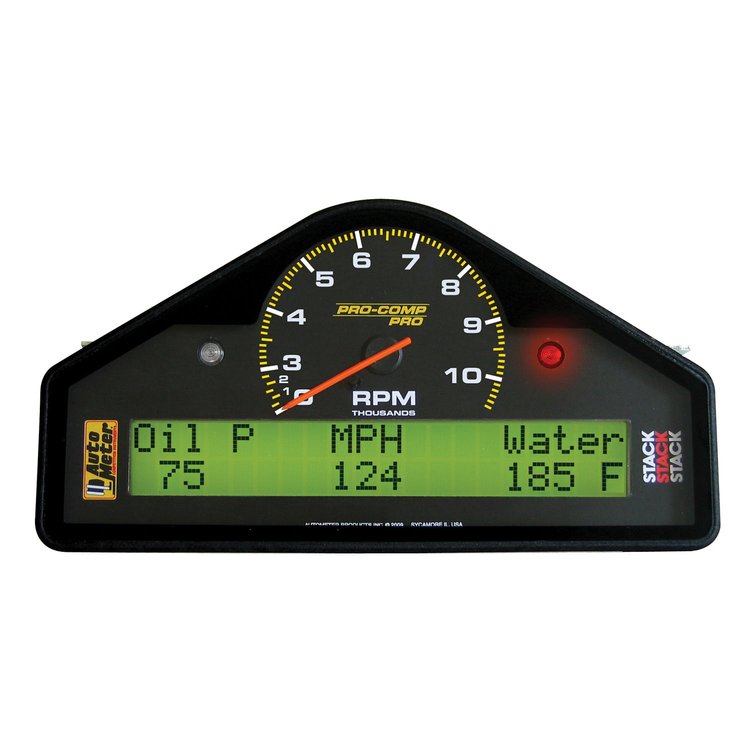

Pro-Comp Pro Street Dash Display Dual Range RPM: 0-3-10K
$1,63499
Ships on Sep 07, 2026
Lowest Price GuaranteeStreet Dashes
- Pro-Comp Pro Street Dash Display
- Dual Range RPM: 0-3-10K
- Speed MPH: 200+
- Oil Press: 0-150 psi
- Oil Temp: 0-300ºF
- Water Temp: 0-300ºF
- Fuel Pressure: Programmable
- Battery Voltage: 8-18v
Notes: - Full Sweep, Stepper Motor meter movement.
- Includes 1/8" NPT Sender.
- If mounting temperature sender in a steel fluid pan, use Auto Meter #105-2260 weld-in boss
- Resettable Trip odometer.
- User Programmable Warning Function
- Peak Recall
- Powered by advanced circuit designs for improved electrical noise resistance and precision.
- Integrated programmable warning light and LCD message display for temperatures, pressures, and battery voltage.
- Programmable fuel level compatible with most fuel level sensors. Integrated programmable low fuel warning light.
- External plugs provided for shift and warning light activation.
- Includes odometer and resettable trip odometer.
- Dimensions: 7.5" W x 4" H x 2.125" D (to back of MIL connector)
- Includes robust professional wiring harness pre-terminated with mil spec and MSS connectors for ease of installation.
- Operates on most 1-16 cylinder engines with 12V electronic ignitions. Some applications may require DIS Tach Adapter #9117.
- Water, Dust/Dirt, Shock, and Vibration Proof! Fully sealed to IP67 standard.
- Includes white LED backlighting.
- Multiple pre-programmed display layers allow you to track different combinations of vehicle parameters at the push of a button.
- Transflective LCD Backlit display provides guaranteed visibility in bright sunlight and complete darkness.
- Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, Fuel Level, with an option to add Fuel Pressure separately.
- Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
- Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
- Includes oil pressure, water temperature, oil temperature sensors
- Display features digital values for vehicle parameters and configurable text warning messages
- Built-in warning and low fuel LEDs
- Optional shift light output, single stage or progressive shift light
- Configurable for engines from 1-12 cylinders
- Programmable Speed and Fuel Level inputs
- IP67 sealed
The AutoMeter Street display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information.
Part TypeSpeedometer/Tachometer
BrandAUTO METER
Package Height1.0
Package Width4.0
Package Length13.0
Weight3.9 PG
Part CategoryPerformance Parts
Warning Lights IncludedYes
Gauge Face ColorBlack/Luminescent green
Bezel ColorBlack
Size7.5 W x 4 H x 1-1/2 D
Fuel Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Clock IncludedNo
Bezel FinishBlack
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedNo
Gauge StyleAuto Meter Pro-Comp Pro
Gauge Number ColorWhite
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedYes
Transmission Temperature Gauge IncludedNo
Lighting TypeLED
Bezel StyleStack
QuantitySold as a kit
Fuel Level Gauge IncludedYes
Dial (Face Color)Black
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedYes
Pointer ColorFluorescent Red
Gauge SeriesAnalog/Digital
Speedometer Gauge IncludedYes
Oil Pressure Gauge IncludedYes
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number6003
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
