CHEVROLET PERFORMANCEPART NUMBER: 809-12363406

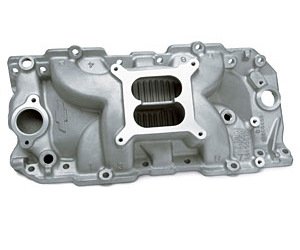

Aluminum Intake Manifold Chevy 396-502 (Oval Port)
$45634
Chevy 396-502Oval Port Dual Plane
- Aluminum Intake Manifold
- Chevy 396-502 (Oval Port)
- Square Bore Holley 4150 Carb Flange (Non-EGR)
- Compatible with aluminum cylinder heads, including 1975-Earlier big block Chevy engines with large oval port heads
- Bolt patterns for air conditioner brackets, late model water neck, and alternator
- Uses Intake Manifold Gasket #809-12366985 (not included)
- Uses Intake Manifold Bolt Kit #809-12367959 (not included)
- Does not fit production Corvettes
- Check hood clearance on Chevelles (manifold height is 4.45')
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandCHEVROLET PERFORMANCE
Package Height6.2
Package Width11.6
Package Length24.2
Weight20.35 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
EgrWithout EGR
Intake MaterialAluminum
Intake StyleDual plane
QuantitySold individually
Intake FinishNatural
Carburetor QuantityOne
Part FitmentSemi Universal
Intake Manifold Height4.45 in (113.03 mm)
Vendor Part Number12363406
Package Qty1
Package TypeEA
