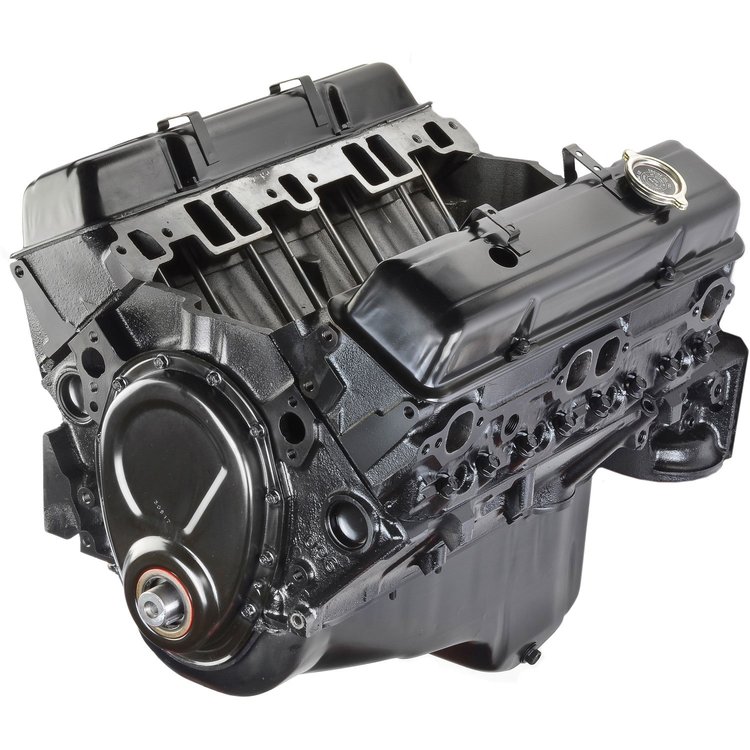

Specifications

• 4-bolt main with a 2-piece rear main seal
• Nodular iron crankshaft
• 4.000' bore x 3.480' stroke
• Internal balance
• LT1/LT4 powdered metal connecting rods
• Cast aluminum pistons (dished)
• 8.5:1 compression ratio
• Hydraulic flat tappet cam (.383"/.401" Lift, 194 / 202 Duration @ .050", and 112° lobe separation)
• Cast iron cylinder heads with 76cc chambers
• 1.940' Intake / 1.500' Exhaust valves
• 1.250' diameter valve springs
• 1.5:1 ratio rocker arms
• 3/8' pressed-in rocker studs
• Block is compatible with left or right side oil dipstick (plugs for unused side included)
• 4-quart oil pan
• Oil pump, oil pump pickup and oil pump drive shaft installed
• Includes timing tabs for a 6-3/4" or an 8" balancer (balancer not included)
• Recommended spark plug: 14mm thread, .460" reach, 5/8" hex, tapered seat, projected tip (AC Delco p/n 065-R45TS, Autolite p/n 417-144)
• Not Intended for Marine Use
• Requires p/n 809-19299222 or p/n 555-23605 Oil filter adapter (not included)
• Not Intended for Marine Use
• No core charge

  Major Components NOT Included:
• Starter
• Flexplate/Flywheel
• Harmonic Balancer & Bolt
• Water Pump
• Intake Manifold
• Carburetor
• Fuel Pump
• Fuel Pump Pushrod
• Distributor
• Spark Plugs & Wires
• Oil & Filter
• Gaskets
• Motor Mounts

Engine Break-In Procedure

Use conventional or break-in oil (non-synthetic) for the first oil change, be sure to check the oil level in the engine and prime the oil system with an engine priming tool.

Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. This is critical to break in the camshaft.

Drive the vehicle with varying speeds and loads on the engine for the first 30 miles. Be sure not to use a lot of throttle or high RPM.  Run five or six medium-throttle accelerations to about 3000 RPM (40 to 50 MPH), then letting off in gear and coasting back down to 20 MPH. Run a couple of hard throttle accelerations up to about 5000 RPM (55 to 60 MPH), then letting off in gear and coasting back down to 20 MPH.

Let the engine cool and change the oil and filter using conventional (non-synthetic) oil and check coolant level, top off if necessary. Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading.  Change the oil and oil filter again using conventional (non-synthetic) oil.  Keep an eye on oil level during the first thousand or so miles.

It would be suitable to use synthetic motor oil after the second recommended oil change and mileage accumulation.
