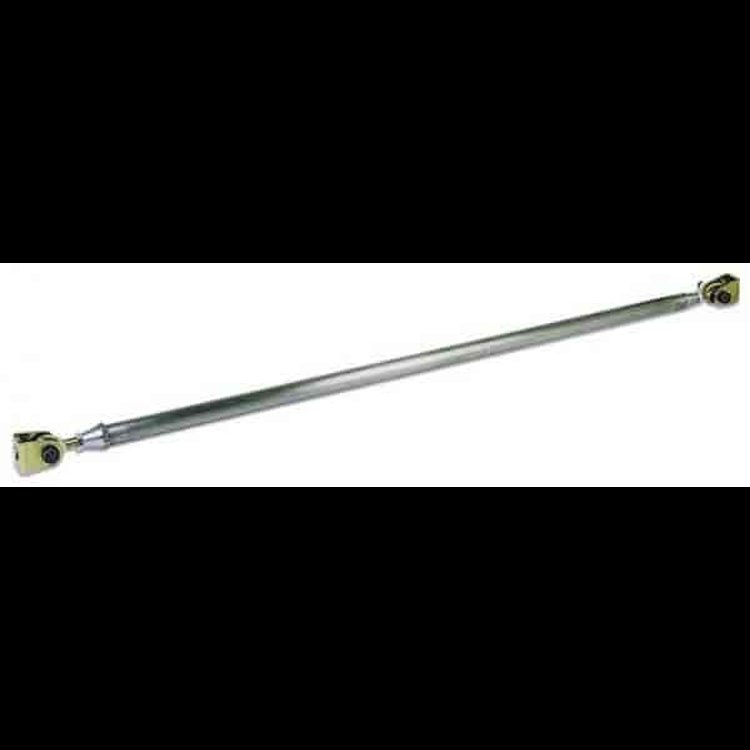

Bolt-On Diagonal Link 36" Long, 3/4" Diameter .156" Wall Mild Steel Tubing
InfoVehicle Info Needed
COMPETITION ENGINEERINGPART NUMBER: 247-2052

Bolt-On Diagonal Link 36" Long, 3/4" Diameter .156" Wall Mild Steel Tubing

$12999
ShippingShips on Oct 01, 2026
Lowest PriceLowest Price Guarantee

Bolt-On Diagonal Links
    Bolt-On Diagonal Link
  • 36" Long, 3/4" Diameter .156" Wall Mild Steel Tubing
  • 3/4" Clevis Mounting Brackets
  • Bolt-On (No Welding Required)

    Bolt-On Diagonal Link; 0.75 in. x 0.156 in. Wall Mild Steel Tube; 0.75 in. Mounting Brackets; 36.5 in. Length; Can Be Used w/Ladder Bars; Ladder Links™; Standard 4-Links; • Eliminates side to side housing movement• Superior to the Panhard Bar for eliminating sway in Ladder Bar and 4-Link suspensions• Can be used with our Ladder Bars, Ladder Links™ and Standard 4-Links with 3/4" mounting holes• Made from 3/4" x .156" wall mild steel tube, 36.5" long overall• Left and right hand rod ends allow for on-car adjustments• Length can be shortened to accommodate narrow chassis• Kits include all rod ends and mounting hardware

Eliminate side-to-side housing movement

Competition Engineering Panhard Bars and Diagonal Links eliminate side-to-side movement of the rear axle housing within the chassis. Typically used in drag racing applications, diagonal links are superior to the panhard bar for eliminating sway in ladder bar and 4-link suspensions. Panhard bars are more common on street or road course vehicles because they handle greater side loads.

Features:

  • Increased Stability Down Track
  • Direct Fit and Custom Applications
  • Stronger than Factory Supplied
Part TypeFour-Link Suspension Assembly Link
Product LineCompetition Engineering Panhard Bars and Diagonal Links
BrandCOMPETITION ENGINEERING
Package Height2.5
Package Width3.7
Package Length37.0
Weight4.95 PG
Part CategoryPerformance Parts
Rod Ends IncludedYes
Diagonal Link Diameter0.75 in (19.05 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Diagonal Link Thickness0.156 in (3.962 mm)
Diagonal Link StyleBolt on
Diagonal Link MaterialMild steel
Diagonal Link FinishNatural
QuantitySold as a kit
Mounting Bracket Hole Diameter0.75 in (19.05 mm)
Part FitmentSemi Universal
Diagonal Link Length36 in (914.4 mm)
Vendor Part NumberC2052
Package Qty1
Package TypeEA
