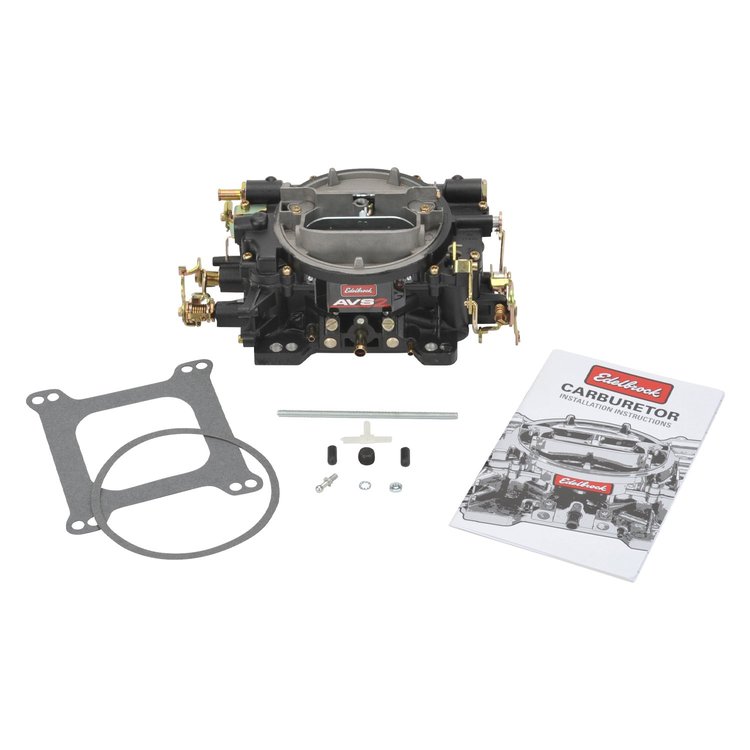

Edelbrock 19053

Features:

• (1) Base gasket and (1) top gasket included
• Ideal for use with street performance small and big-block engines utilizing a dual or single-plane intake manifold
• Annular-flow primary boosters improve off-idle and cruising performance
• (8) Equally-spaced orifices improve fuel metering from idle to the main circuit
• Timed and full vacuum ports for advancing ignition timing

Technical Specifications:

• Bore diameters: 1.440 in. primary, 1.750 in. secondary
• Main venturi diameter: 1.190 in.
• Primary metering jet: .101 in.
• Secondary metering jet: .098 in.
• Metering rod size: .070 in. x .037 in.
• 5 in. Hg (vacuum) Orange step-up spring
• Body height: 3.250 in.

Notes:

• Requires the use of a fuel filter between the fuel pump and carburetor
• NOT compatible with alcohol, race fuel or E85
• Will work with Ford automatic overdrive transmissions (AOD) - requires Lokar bracket 625-SRK-4000
• Cannot be converted to an electric choke

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
