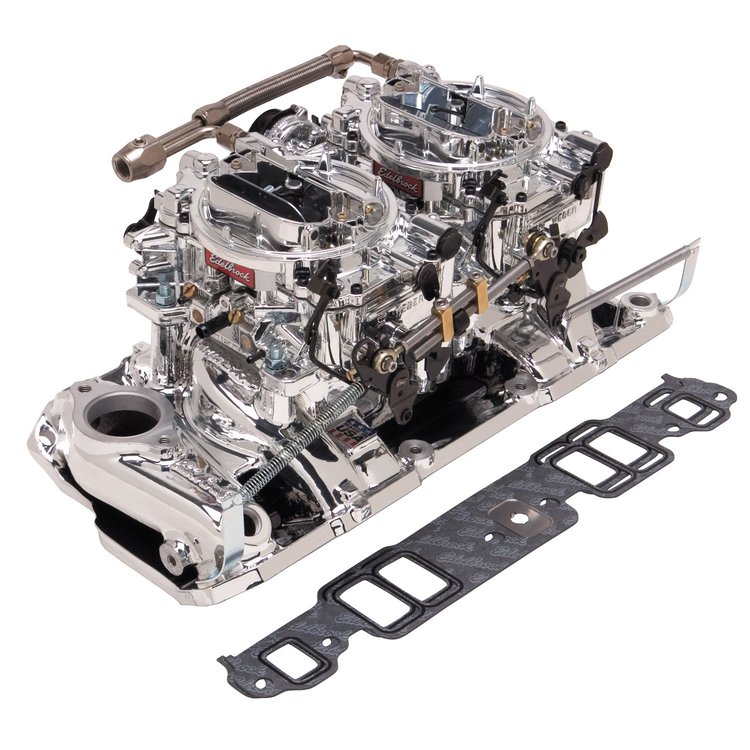

Edelbrock RPM Dual-Quad Manifold and Carburetor Kit for Small Block Chevy 1955-1986 with Endurashine Finish

Edelbrock 20254

350-20254

made in usa
jegs shipping
FREE Shipping
Ships
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee
Edelbrock RPM Dual-Quad Manifold and Carburetor Kit for Small Block Chevy 1955-1986 with Endurashine Finish $1,641.95
RPM Dual-Quad Manifold and Carb Kit
  • Small Block Chevy 1955-1986
  • RPM Air-Gap Intake Manifold
  • 500cfm Thunder Series AVS Carburetors
  • EnduraShine Finish

  • Edelbrock 20254 Details

    Chevrolet

  • EnduraShine Finish

    DUAL-QUAD MANIFOLD & CARBURETOR KIT INCLUDES
    Kit Part Number Intake Manifold Carburetors Throttle Linkage Fuel Line Intake Gaskets Intake
    Bolt Kit
    Carb Stud Kit
    350-20254 350-75254 350-18034, 350-18044 350-7094 350-8091 350-7201 350-8504 350-8008

  • Specifications:

    CFM
    500
    Engine Make/Size
    Chevy Small Block (262-400)
    Choke
    Electrical
    Barrel
    Four
    Finish
    Endurashine™
    Cylinder Head Type
    Standard
    EGR
    Without EGR
    Air Cleaner Element Included
    No
    Air Cleaner Housing Included
    No
    Air Cleaner Spacer Included
    No
    Basic Operating RPM Range
    1,500-6,500
    Carburetor Flange
    Square bore
    Carburetor Included
    Yes
    Carburetor Quantity
    Two
    Carburetor Studs Included
    Yes
    Engine Block Style
    Stock/OEM standard deck
    Fuel
    Gasoline
    Fuel Line Included
    Yes
    Intake Finish
    EnduraShine
    Intake Manifold Fasteners Included
    No
    Intake Manifold Gaskets Included
    Yes
    Intake Material
    Aluminum
    Intake Style
    Dual quad
    Linkage Included
    Yes
    Quantity
    Sold as a kit
    Secondary Type
    Air valve
    Throttle Linkage Type
    Progressive
    Valve Cover Gaskets Included
    No
    Fuel Inlet
    Single
    Manufacturer's Part Number:
    20254

    A huge hit among street rodders, these Dual-Quad Kits offer the ultimate set-up for anyone who wants the look and the performance of dual-quad carbs. They include an Edelbrock RPM or RPM Air-Gap Dual-Quad intake manifold and two 500 cfm Thunder Series AVS carburetors calibrated specifically for dual-quad applications (one manual choke, one electric choke). To make the installation simple, these kits also include our high-tech progressive throttle linkage, Russell fuel inlet and high-quality Edelbrock intake gaskets. The manifold and Thunder Series carbs are available with a standard finish or Edelbrock's bright EnduraShine chrome-like finish for long lasting show quality looks.

    Edelbrock's EnduraShine finish is something you have to see to believe! EnduraShine is a bright silver chrome finish with powdercoated durability. Three-step Vacuum Metalizing Process: base coat, aluminum coat, and clear top coat. It resists discoloration from heat and has an amazing chemical resistance. The clear top coat enhances polished aluminum look for a great appearance but you never have to polish it!

    Edelbrock Dual-Quad Manifold and Carburetor Kits include:

  • All New design RPM Air-Gap Dual-Quad intake manifold engineered for increased horsepower and torque
  • Satin or EnduraShine finish
  • Thunder Series AVS carburetor precision tuned for accurate two-carburetor calibration
  • Endura finished fuel inlet
  • Progressive throttle linkage for accurate throttle position and carb timing
  • High-quality Edelbrock intake gasket set
  • American Made Performance and Quality only Edelbrock can provide

  • will this setup work with an HEI dist. ? (clearance ?)

    Asked by: Moon
    This setup will not clear a normal HEI distributor.
    Answered by: Rusty B
    Date published: 2018-01-19

    How do you get the oil into the crankcase on a 283 corvette engine with this dual carb setup?

    Asked by: Jerry9
    The valve covers would have to be changed to a set that has holes in them.
    Answered by: Jon Jegs Tech
    Date published: 2018-01-11

    Re:  the Dual Carb Edlebrock setup.  Is it all put together or is it a puzzle. I would expect the linkage and gas lines, springs etc. to be together with the carbs being adjusted and tuned to work together.  Are the carbs Bolted to the intake manifold?

    Asked by: Jerry9
    This kit does not come pre-assembled.
    Answered by: Jon Jegs Tech
    Date published: 2018-01-10

    Is there a place on the manifold to insert the oil fill/breather tube?

    Asked by: Eddie123
    On that intake, it does not.
    Answered by: BrandonJ
    Date published: 2017-09-20
