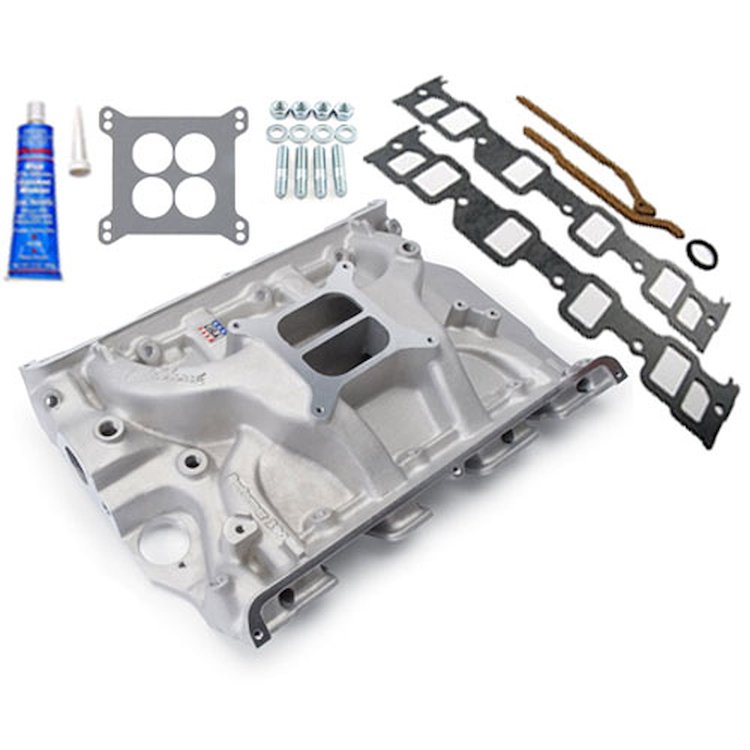

Performer 390 Ford FE Intake Manifold with Installation Kit
Includes:
This is a great value! These kits ensure that you'll get the job done right. Each kit includes an Edelbrock intake manifold, intake gaskets, carb gaskets, a tube of blue gasket sealer and we also throw in a set of carburetor studs.
Kit Includes:
- Edelbrock Intake Manifold (Satin) - 350-2105
- FelPro Intake Manifold Gaskets - 375-MS90145
- JEGS Carburetor Studs - 555-15840
- JEGS Carburetor Base Gasket - 555-16105
- JEGS RTV Sealant (Blue) - 555-28030
Designed for street 332-352-360-390-406-410-427-428ci Ford V8s with medium- or low-rise cylinder heads. This intake manifold is for 332, 352, 360, 390, 406, 410, 427 and 428 V8s with OEM 4V carb.; 1966-72 (1973 non-CA); except stock equipped EGR. Manifold not equipped with EGR; will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361ci and 391ci Ford truck V8s.
Installation Notes: - Port exit dimensions: 1.06' x 1.75'
- Manifold height: (A) 4.35' , (B) 5.50'
- Carb pad height: 4.92" Click here to determine carburetor pad height.
- Recommended Intake Gaskets: JEGS p/n 555-210300
Carb Recommendations - Edelbrock 600 cfm Performer Carburetor Manual Choke p/n 350-1405 , Electric Choke p/n 350-1406
- Edelbrock 650 cfm Thunder AVS Carburetor Manual Choke p/n 350-1805 , Electric Choke p/n 350-1806
- Edelbrock 750 cfm Performer Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
- Edelbrock 800 cfm Performer Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
- Edelbrock 800 cfm Thunder AVS Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
