Edelbrock 5093 E-Street Cylinder Head Kit 1961-79 Big Block Chrysler 361-440ci
350-5093K
Product Q&A
View Now
Mopar Big Block

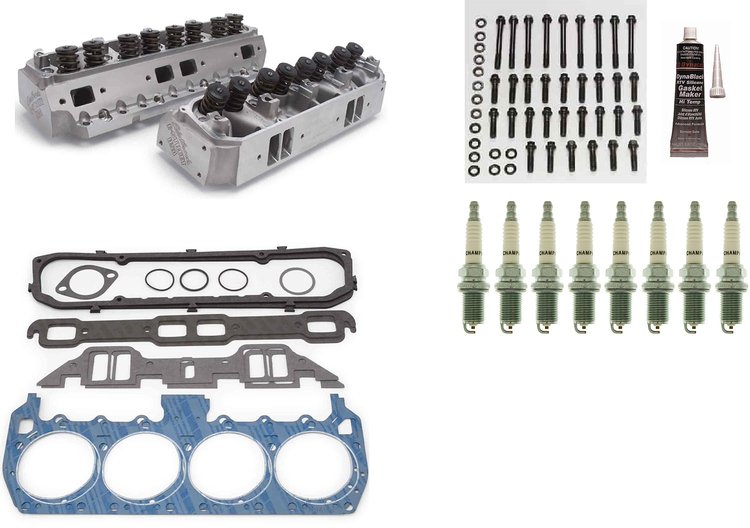

Kit Includes:
- (2) Edelbrock E-Street Cylinder Heads - 350-5093
- (1) Edelbrock Head Gasket Kit - 350-7366
- (1) Edelbrock Head Bolt Kit - 350-8591
- (8) Champion Spark Plugs - 71
- (1) Jegs Black RTV Silicone - 555-28035
Ideal for entry-level street performance 1961-79 Chrysler 361-440 c.i.d. Wedge engines operating in the idle to 5,500 rpm. The modern combustion chamber design also improves the combustion process and the larger than stock intake and exhaust ports move more air through your engine. These features improve the engine's efficiency, resulting in more horsepower and torque
Specifications: - Combustion Chamber Volume: 84cc
- Deck Thickness: 5/8"
- Valve Spring Diameter: 1.55"
- Max Lift: .600"
- Rocker Studs: N/A
- Pushrod Diameter: 3/8"
- Intake Port Volume: 210cc
- Intake Valve Diameter: 2.140"
- Exhaust Port Volume: 70cc
- Exhaust Valve Diameter: 1.81"
Technical Notes:
Not Compatible with hydraulic roller camshafts. Vacuum advance distributor may not clear cylinder head. Recommended spark plugs are Champion RC12YC or equivalent 14mm x ¾" reach with flat gasket seat.
Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28" H2OValve Lift .100" .200" .300" .400" .500" .600" .700" Intake 79 143 207 256 278 291 - Exhaust 70 126 160 188 206 217 -
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
