PROBIKE

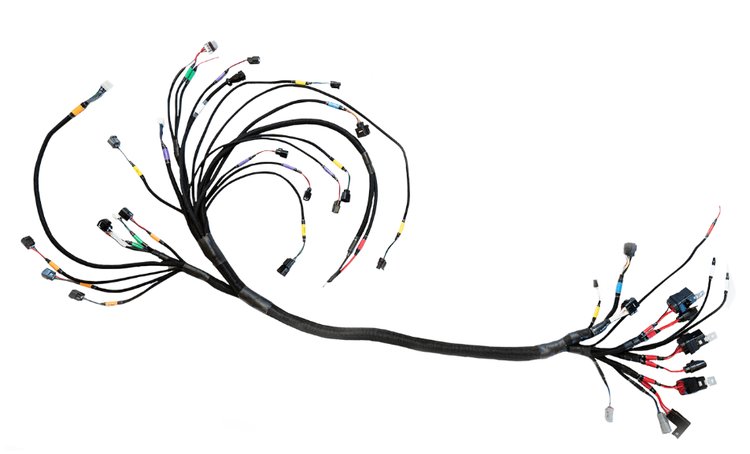

FuelTech 3026100303 PROBIKE "A" Harness:
- Complete harness for most 4-cylinder sportbike applications w/some modifications, though designed around a stock Hayabusa w/stock connectors and sensors
- Required harness for FuelTech ECU and engine monitoring system FT450
- Required harness along with PROBIKE Harness "B" 3026100304 when using FT550, or FT550LITE ECU's and engine monitoring systems (both harnesses required)
- Connectors for 4 injectors w/Hayabusa Sumitomo injectors and supports up to 8 w/PROBIKE "B" 3026100304 harness and using FT550 or FT550LITE
- Setup for 4 Coils w/stock Hayabusa 2-way coil connectors
- Pre-wired engine sensor wires such as TPS, Hall and VR crank sensor, Hall and VR cam sync, speed sensor, oil pressure, and fuel pressure
- Connector in place for a Nano WB-O2 Oxygen Sensor Conditioner and a wideband O2 sensor such as 540-3737 (or equivalent). It can also be set up for use with the Alcohol O2 Conditioner by using the Alcohol O2 Harness and Bosch to NTK Adapter Harness (all sold separately)
- (4) Additional outputs to control the wastegate, nitrous, fuel pump, and more (will require connector kits for the components outputs are controlling)
