IGN1A Inductive Smart Coil
InfoVehicle Info Needed
FUELTECHPART NUMBER: 382-5001100012

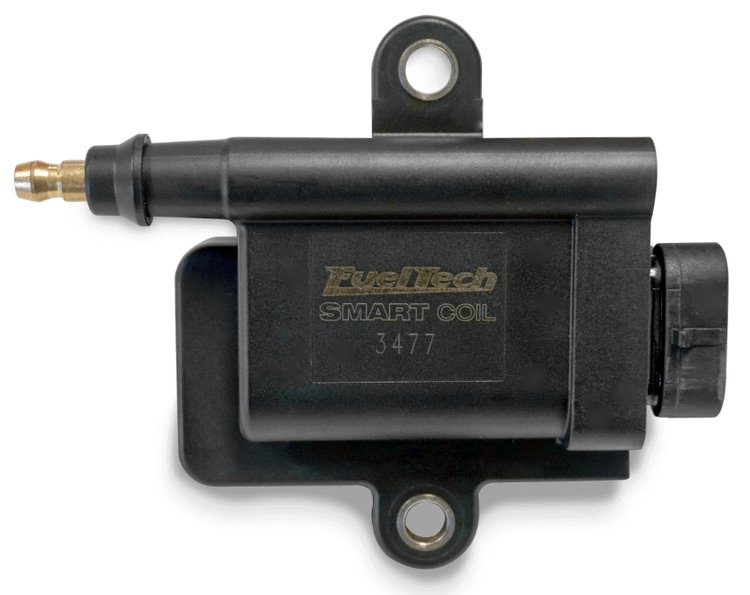

IGN1A Inductive Smart Coil

$8900
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Hi-Temp Universal Spark Plug Wires [135-Degree Black Ceramic Boot]

JEGS

Hi-Temp Universal Spark Plug Wires [135-Degree Black Ceramic Boot]

Part Number : 555-40282
$12999$142.99
You Save$13.00
Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Spark Plug Boot Puller

JEGS

Spark Plug Boot Puller

Part Number : 555-80574
$739$7.99
You Save$0.60
Spark Plug Wire Crimping Tool for 7 mm to 9 mm Wires

JEGS

Spark Plug Wire Crimping Tool for 7 mm to 9 mm Wires

Part Number : 555-80570
$3999$43.99
You Save$4.00

Inductive Coil
IGN1A Inductive Smart Coil
  • Individual Coil per Cylinder and Sequential Ignition Applications
  • Integrated Ignitor Module
  • 175 Millijoules (mJ) of Ignition Energy
  • 3.2 Milliseconds (ms) of Spark Duration
  • Sold Individually

    Recommended Dwell Table

    FuelTech 5001100012 IGN1A Smart Ignition Coil:

    • Integrated ignition ignitor eliminates the need for an external ignition module
    • Maximum dwell time of 9 ms for maximum output from the coil for short periods of time under high load or higher boost levels
    • Only use maximum dwell with an ECU that controls dwell under maximum load and boost conditions
    • Dwell time of 5 ms is recommended for normal driving
    • 40 Amp fuse recommended for every 4 coils
    • Resistor style spark plugs are recommended when using inductive smart coils
    • Use with FuelTech PRO600 Gen II V8 Complete Harness for the FT600 ECU for a complete plug-and-play wiring solution

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • Ignition Coils with the Power to Fire under Extreme Cylinder Pressures

      FuelTech ignition coils are designed with the power to run engines with high-compression ratios, boost, or nitrous.

    Part TypeIgnition Coil
    Product LineFuelTech Ignition Coils
    BrandFUELTECH
    Package Height3.6
    Package Width3.7
    Package Length4.35
    Weight0.96 PG
    Part CategoryPerformance Parts
    Coil Wire AttachmentMale
    Spark Discharge Duration3.2ms
    Current Consumption (5ms Dwell)8A
    Ignition Energy (9ms Dwell)175 mJ
    Current Consumption (9ms Dwell)20A
    QuantitySold individually
    Part FitmentSemi Universal
    Recommended Nominal Dwell5.00ms
    Output Voltage40k V
    Current Spark Plug (9ms Dwell)150mA
    Vendor Part Number5001100012
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
