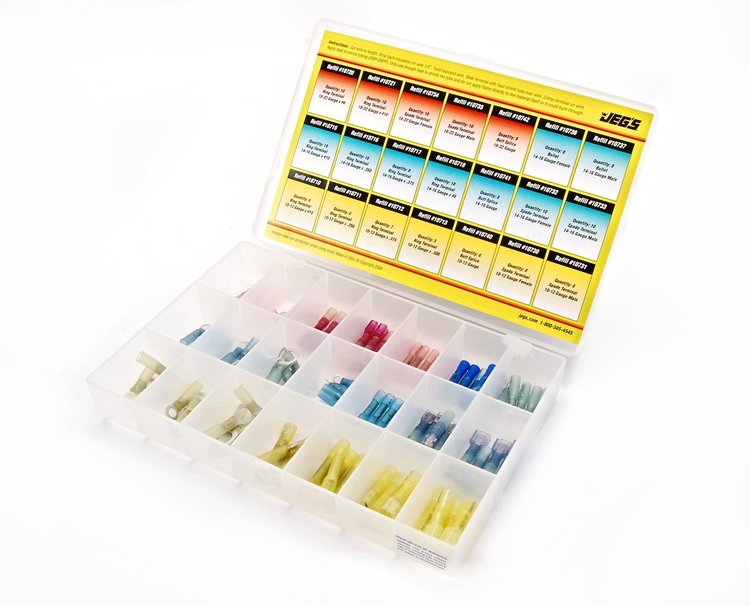

105-Piece Heat Seal Crimp Connector Kit

Name: 105-Piece Heat Seal Crimp Connector Kit
Brand: JEGS
SKU: 555-10700
Price: 51.99 USD
Availability: InStock

^$51⁹⁹$57.99You Save$6.00

10 left in stock

Ships Today

Lowest Price Guarantee

Wiring Terminal Kit

105-Piece Heat Seal Crimp Connector Kit

All-Weather

Shrinkable Wiring Crimp Terminals

Splice Connectors

JEGS 555-10700 105-Piece Heat Seal Crimp Connector Kit Includes:

5 ea. 10-12 ga. x #10 ring (use refill 555-10710)
5 ea. 10-12 ga. x .250 ring (use refill 555-10711)
5 ea. 10-12 ga. x .375 ring (use refill 555-10712)
5 ea. 10-12 ga. x .500 ring (use refill 555-10713)
5 ea. 10-12 ga. butt splice (use refill 555-10740)
5 ea. 10-12 ga. female spade (use refill 555-10730)
5 ea. 10-12 ga. male spade (use refill 555-10731)
5 ea. 14-16 ga. x #10 ring (use refill 555-10715)
5 ea. 14-16 ga. x .250 ring (use refill 555-10716)
5 ea. 14-16 ga. x .375 ring (use refill 555-10717)
5 ea. 14-16 ga. x #8 ring (use refill 555-10718)
5 ea. 14-16 ga. butt splice (use refill 555-10741)
5 ea. 14-16 ga. female spade (use refill 555-10732)
5 ea. 14-16 ga. male spade (use refill 555-10733)
5 ea. 14-16 ga. female bullet (use refill 555-10736)
5 ea. 14-16 ga. male bullet (use refill 555-10737)
5 ea. 18-22 ga. x #6 ring (use refill 555-10720)
5 ea. 18-22 ga. x #10 ring (use refill 555-10721)
5 ea. 18-22 ga. female spade (use refill 555-10734)
5 ea. 18-22 ga. male spade (use refill 555-10735)
5 ea. 18-22 ga. butt splice (use refill 555-10742)

JEGS 555-10700 105-Piece Heat Seal Crimp Connector Kit Features:

Provides a heat-sealed connection in temperatures ranging from -67ºf to +230ºf
Insulates and protects connections from physical abuse, abrasion, water, salt, and other corrosive compounds
Heat seals shrinkable plastic ends to conform to the wire with as little as 194ºf of heat from a handheld heat gun or mini butane torch

Wiring Crimp Terminals

JEGS All-weather, shrinkable wiring crimp terminals, and splice connectors provide a heat-sealed connection in temperatures ranging from -67ºF to +230ºF. Insulates and protects connections from physical abuse, abrasion, water, salt, and other corrosive compounds. Heat seals shrinkable plastic ends to conform to the wire with as little as 194ºF of heat from a handheld heat gun or mini butane torch. Available in a 105-piece 10 to 22 AWG assortment that includes ring terminals, male and female spade terminals, male and female bullet connectors, and butt splice connectors in a durable storage case. Replacement packs are also available.

Part TypeWiring Terminal

Product LineJEGS Premium Heat Seal Crimp Connectors

BrandJEGS

Package Height1.7

Package Width7.3

Package Length10.8

Weight1.2 PG

Part CategoryAccessories

QuantitySold as a kit

Part FitmentUniversal

Package Qty1

Package TypeEA
