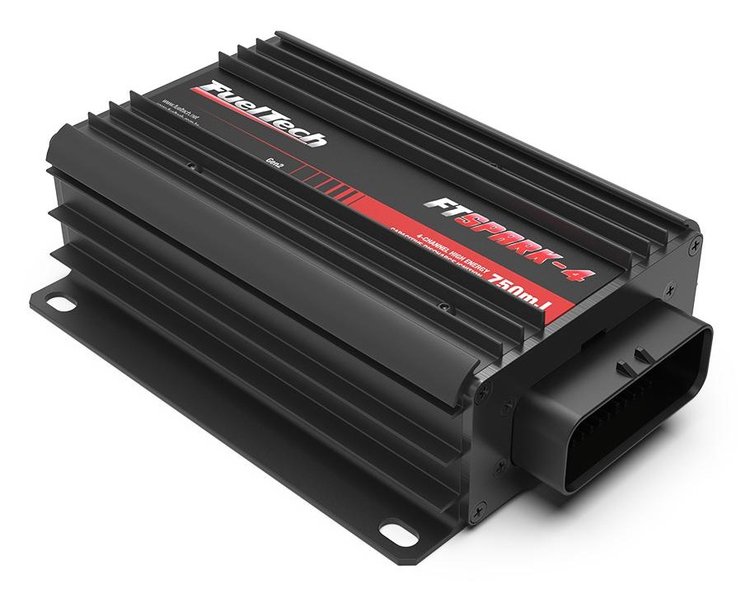

FTSPARK-4 Gen II High-Energy Capacitive Discharge Ignition (CDI) Module

Name: FTSPARK-4 Gen II High-Energy Capacitive Discharge Ignition (CDI) Module
Brand: FUELTECH
SKU: 382-5022007544
Price: 1899.00 USD
Availability: InStock

^$1,899⁰⁰

Ships on Sep 04, 2026

Lowest Price Guarantee

FTSPARK-4

FTSPARK-4 Gen II High-Energy 750mj CDI Module

Drives 4 CDI Coils

750mj Spark Output

Compatible with All HP ECUs

140 amps of Coil Current

Programmable Through CAN Connector or Digital Input

Harness Sold Separately

Breakdown of Included Items

FuelTech 5022007544 FTSPARK-4 High-Energy Capacitive Ignition (CDI) Module:

Available connector kit and harnesses (sold separately)
Up to 750 millijoules (mj) of spark energy and 140 amps of current from the coil primary windings
Diagnostics and data logging through CAN communication with FuelTech ECUs (sold separately)
Gold-plated terminals
(1) Wire serial bus to control all ignition outputs with one ECU output
Plastic and anodized aluminum case

Note:

Install this unit away from heat sources (such as turbochargers and exhaust manifolds) because it generates a lot of heat by itself.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIgnition Box

BrandFUELTECH

Package Height3.0

Package Width7.0

Package Length9.0

Weight2.7 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number5022007544

Package Qty1

Package TypeEA
