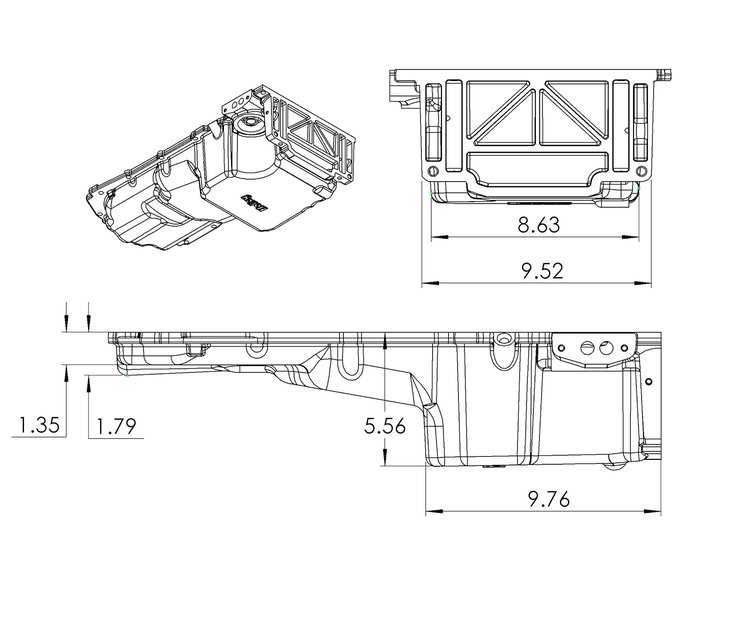

302-20 GM Gen V LT Retro-Fit Oil Pan with Turbo Oil or PVC Return Port
InfoVehicle Info Needed
HOLLEYPART NUMBER: 510-302-20

302-20 GM Gen V LT Retro-Fit Oil Pan with Turbo Oil or PVC Return Port

$52095$579.95You Save$59.00
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Blue Bolt Locker Medium Strength

JEGS

Blue Bolt Locker Medium Strength

Part Number : 555-28084
$699$7.99
You Save$1.00
Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Engine Oil Dip Stick

CHEVROLET PERFORMANCE

Engine Oil Dip Stick

Part Number : 809-12661062
$7999
Thread Sealant 1/2 oz Tube

JEGS

Thread Sealant 1/2 oz Tube

Part Number : 555-28011
$539$5.99
You Save$0.60

Retro-Fit Oil Pans
GM Gen V LT Retro-Fit Oil Pan
  • Allows For Up To 4.00 in. Crankshaft Stroke
  • 6.1 Quart Capacity
  • Cast Aluminum Finish

    Holley 302-20 Retro-Fit Oil Pan Includes:

    • Windage Tray
    • Sump Baffle
    • OE Style Pick-Up Tube
    • Sump Port Plug
    • Oil Filter Stud
    • Billet Oil Passage Cover
    • Gasket, O-Rings & Hardware Needed for Installation

    Holley 302-20 Retro-Fit Oil Pan Features

    • Allows for maximum clearance for vehicles where the steering linkage is behind the engine cross-member
    • Provides OE style fitment-OE oil filter mounting, OE Oil cooler port provision, OE engine NVH impression, OE flange gasket, and sealing, correct structural rigidity, and OE bell-housing attachments
    • High-quality cast aluminum
    • 1/2 in. NPT port for turbo oil return or PVC oil return
    • Optional hinge door baffle 302-30 (sold separately)

    Holley 302-20 Retro-Fit Oil Pan Fitment Notes:

    • These oil pans will work anywhere a GM F-Body oil pan fits but are perfect for the following applications:
    • 1967-2002 Chevy Camaro, Pontiac Firebird
    • 1968-1974 Buick Apollo, Chevy Nova, Olds Omega, Pontiac Ventura
    • 1978-1987 GM G-Body
    • 1964-1972 GM A-Body
    • 1973-1987 GM Full-Size Trucks

    Holley 302-20 Retro-Fit Oil Pan Notes:

    • This oil pan is not for use on engines that originally used a dry sump oiling system.
    • GM Gen V LT Engine Swaps Made Easy

      Holley GM Gen V LT Swap Oil Pans are a perfect engine accessory to complement an LT engine swap into a classic car or truck. OEM oil pans may hang too low, and these oil pans will provide maximum ground clearance for 2WD and 4WD applications.

    Part TypeOil Pan
    Product LineHolley GM Gen V LT Retro-Fit Oil Pans
    BrandHOLLEY
    Package Height10.8
    Package Width14.3
    Package Length24.2
    Weight21.2 PG
    Part CategoryPerformance Parts
    Gaskets IncludedNo Gasket Required
    UsageStreet/Performance
    ConstructionCast Aluminum
    Pickup IncludedYes
    Engine Make/SizeChevy LT1
    Vendor Part Number302-20
    Package Qty1
    Package TypeEA
