LS Intake Manifold Adapter for Cathedral Port Heads
InfoVehicle Info Needed
ICT BILLETPART NUMBER: 335-551316

LS Intake Manifold Adapter for Cathedral Port Heads

$25000
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Hex Head Bolts [M6 x 1.00 x 90 mm UHL, 8 mm Wrench, 8740 Chromoly, Black Oxide]

ARP

Hex Head Bolts [M6 x 1.00 x 90 mm UHL, 8 mm Wrench, 8740 Chromoly, Black Oxide]

Part Number : 070-660-1014
$2299
Intake Manifold Bolt Kit for GM LS Truck Intake

ICT BILLET

Intake Manifold Bolt Kit for GM LS Truck Intake

Part Number : 335-551400
$3000

GM LS Intake Manifold Adapters

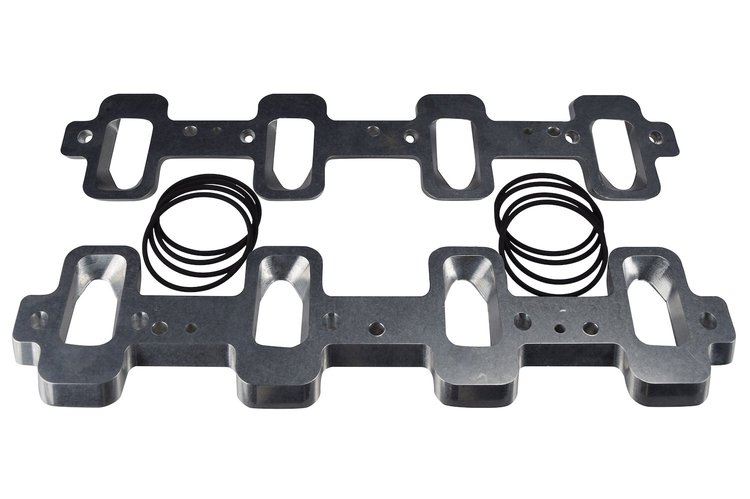

LS Intake Manifold Adapter
  • Cathedral Port Heads to Rectangle Port Intake
  • 1/2 in. Thick
  • Adapts LSA Supercharger
  • (2) Flange Plates, (8) O-Ring Seals

    Intake Manifold Bolt Lengths Required

    • Factory GM Supercharger: M6 x 70mm
    • Car Intake Manifold: M6 x 130mm
    • Truck Intake Manifold: M6 x 90mm

    Additional Notes:

    • Fits cathedral port head and will adapt to any rectangle port intake, supercharger, or blower.
    • Will NOT fit raised port LS7 intakes
    • Package includes 2 adapter plates with 8 o-ring seals



    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • ICT Billet intake manifold adapter kits are manufactured from premium aerospace grade USA 6061-T6 billet aluminum. These innovative adapters can allow swapping a rectangle port intake with cathedral port heads on LS engine and even swapping intakes on a Gen V LT engine. One of the biggest advantages is the ability to swap an LSA supercharger (found on 2009-2013 Cadillac CTS-V and 2012-2015 ZL1 Camaro) to an LS1, 5.3L, and any other GM LS engine with cathedral port heads.

      Part TypeIntake Manifold Adapter
      Product LineICT Billet Intake Manifold Adapter Kits Accessories
      BrandICT BILLET
      Package Height2.0
      Package Width6.0
      Package Length17.5
      Weight3.31 PG
      Part CategoryPerformance Parts
      Vendor Part Number551316
      Package Qty1
      Package TypeEA
