Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
- Street/Strip Automatic Transmission
- GM TH350 (2WD)
- 450 Max Horsepower/400 lb. ft. Torque
- 6" Tailshaft
- 7" Separation On Top Bellhousing Bolts
- 2:52 1st gear ratio
- 1:52 2nd gear ratio
- Extra wide direct drum bushing
- Machined forward and direct pistons
- New kickdown band with welded anchors
- New intermediate and low roller clutches
- All new B&M high performance friction plates, Thrust bearings and races
- Adjustable modulator
- Detent control link with new breather and filter
- Recalibrated valve body
- Hardened intermediate outer race and dual piston apply feature on 2-3 shift to increase torque capacity
- Forward Pattern

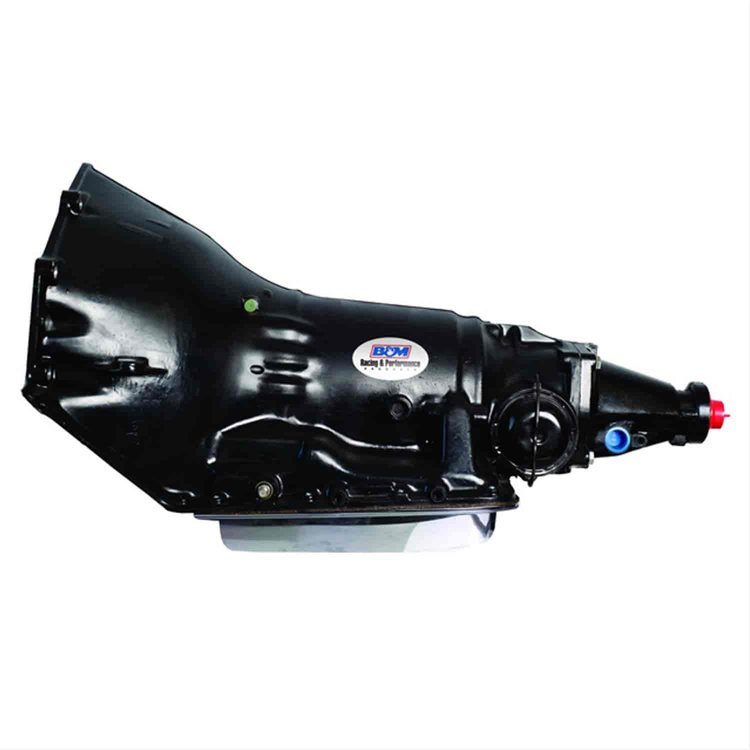

B&M Street/Strip Automatic Transmission - Chevrolet TH350.
- High Performance Replacement Transmission
- Re-calibrated High Performance Valve Body
- Forward Standard Shift Pattern
- Performance Friction Materials
Part TypeAutomatic Transmission
BrandB&M
Package Height21.5
Package Width24.0
Package Length34.5
Weight140.0 PG
Part CategoryPerformance Parts
Automotive Item GradeHigh Performance
Flexplate Shield Built InNo
Transmission Drive TypeRWD
Pan TypeStock
First Gear Ratio (Automatic Transmissions)2.52
QuantitySold individually
Yoke StyleSlip On
Dipstick IncludedNo
Valve Body StyleAutomatic
Trans-Brake IncludedNo
Tailshaft Length6 in (152.4 mm)
Input Spline Quantity30 in (762 mm)
Trans ModelGM- TH350 (Auto)3 Speed
Fluid Fill LocationCase
Part FitmentSemi Universal
Case MaterialAluminum
Transmission Shield Built InNo
Safety RatingNot SFI Approved
LockupNo
Vendor Part Number113001
Package Qty1
Package TypeEA
