Transmission Fluid Fill Capacities

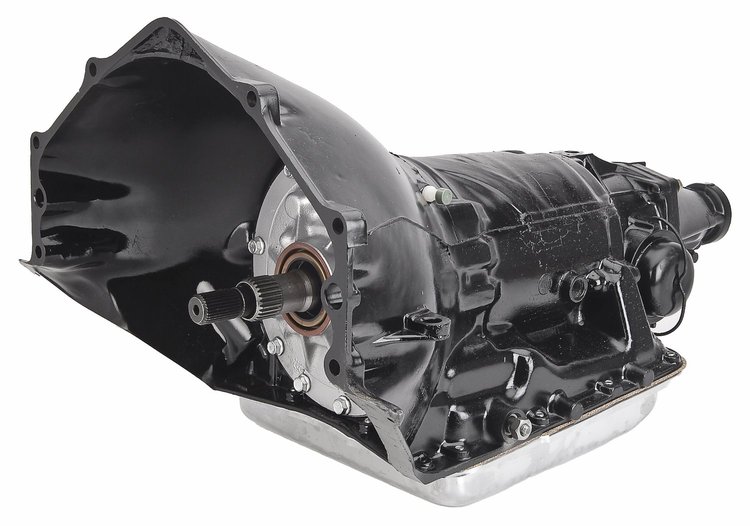

JEGS 555-60300 GM TH350 Performance Automatic Transmission Includes:

• USA made frictions and seals throughout
• New intermediate band
• Heavy-Duty shift kit
• New front pump gears
• All new bushings
• New low reverse and intermediate sprag
• Added clutches throughout for increased hold capacity
• New thrust washers
• Chrome pan with drain pug
• Torque Converter Not Included

JEGS 555-60300 GM TH350 Performance Automatic Transmission Features:

• Fits Chevrolet Engines and 2WD Applications
• Handles Up To 450 HP
• Firm, Crisp Shifts
• Designed to work without a throttle valve or kick-down cable
• Removal of the kick-down block-off plug voids the warranty
• Speedometer drive gear and driven gear not included
• Overall Length: 27 5/8 in.
• Total transmission fluid capacity: 10 quarts
• Transmission fluid service capacity: 4 quarts

JEGS 555-60300 GM TH350 Performance Automatic Transmission IMPORTANT Notes:

• Governor cap spring is not included. You will need to use your original or purchases a new one.
• This JEGS Performance re-manufactured Transmission has gone through rigorous testing to provide you with the best possible replacement transmission
• Here are a few tips to ensure a successful installation
• Follow the manufacturer's instructions thoroughly
• Before installation, flush any old fluid from your system, including transmission lines, oil cooler, and torque converter to remove any contaminants that could harm your new transmission
• When installing your torque converter, follow the instructions carefully to ensure proper fitment into the transmission input shaft and also attaching to your engine. Specific tolerances are required so that you do not damage the front pump in the transmission or the converter.
• If you have any problem installing this transmission, before returning it please call the JEGS technical support line. Our experts may be able to assist you with the proper installation.
