Victor Jr. LS1 Intake Manifold and Timing Kit

Name: Victor Jr. LS1 Intake Manifold and Timing Kit
Brand: EDELBROCK
SKU: 350-2908
Price: 1099.95 USD
Availability: InStock

^$1,099⁹⁵

Ships on 09/09/2026

Lowest Price Guarantee

Chevy LS Victor Jr.

GM Gen III LS
Cathedral Port
4-bbl Square-bore Carburetor Flange
Includes Timing Control Module
3500-7500 RPM Range

This high-rise single plane intake is capable of supporting up to 600 hp. The Victor Jr. LS1 accepts a square bore carburetor and includes an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS1 Coil-on-Plug ignition system. The module offers a choice of several built-in timing curves, each tailored for engine displacement, cam profiles, and fuel grades. Most applications will require hood modification.
Installation Notes
Port Exit Dimensions: .98" Wide x 2.74" Tall
Uses LS1/LS6-style individual port O-ring seals
Recommended intake gasket; Jegs 555-210800
Manifold Height: (A) 4.95' , (B) 4.95'; Carb pad height = 4.95'
View Manifold 'A/B' Measurement Guide.

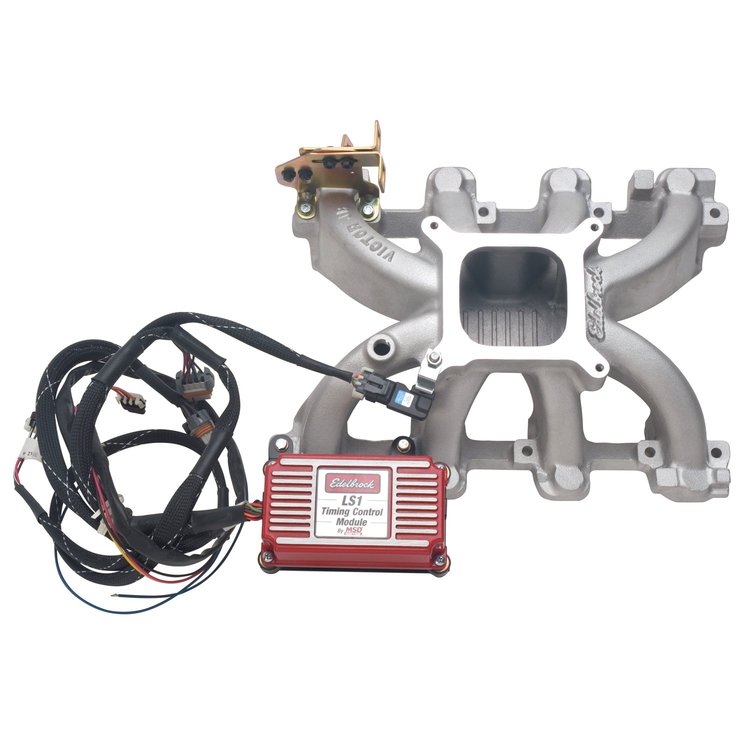

Includes intake manifold, wiring harness, throttle cable/transmission kickdown cable bracket, and timing control module
Throttle/trans bracket compatible with TH350, 200R-4 & TH700R-4 transmissions
Timing control module and wiring harness works with LS1 24x reluctor wheel(crank trigger) applications only
LS1(24x) applications can be identified by the rear mounted cam position sensor that is black in color
LS2 applications with 58x reluctor wheel(crank trigger) use MSD ignition controller 121-6012
LS2(58x)applications can be identified by the timing cover mounted cam position sensor that is grey in color

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold

BrandEDELBROCK

Package Height8.1

Package Width14.8

Package Length23.8

Weight21.5 PG

Part CategoryPerformance Parts

Engine Block StyleStock/OEM standard Deck

UsageRacing

Number Of CarbsOne

Intake MaterialAluminum
