Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
![TIG 200 DC Welder [120/220V]](https://www.jegs.com/images/mini_200/500/555/555-81542.jpg)
TIG Welders

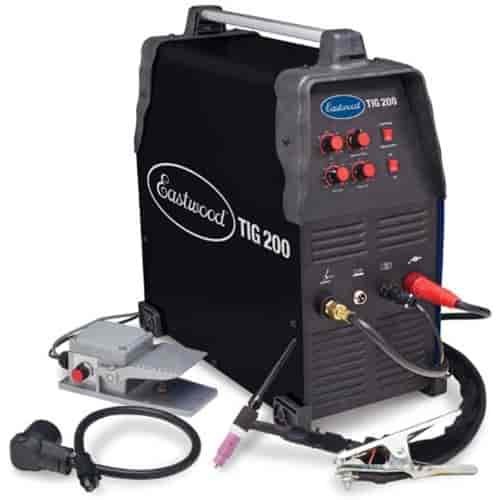

- TIG 200 AC/DC Welder
- TIG200 Unit
- TIG Torch (17 Series), 14ft
- 110v-to-200v Adapter Plug
- Hammer and Brush
- Various Cups and Collets
- Thoriated Tungsten (2.0mm Red)
Complete Contents - TIG200 Unit
- Shielding Gas Regulator
- Shielding Gas Hose
- Ground Cable with Clamp, 10'
- TIG Torch (17 Series), 14'
- Foot Pedal for Amperage Control
- 110v-to-200v Adapter Plug
- Instruction Manual
- Handheld Shield
- Hammer/Brush
- #7 Cup (7/16"), #6 Cup (3/8"), #5 Cup (5/16")
- Long Back Cap, Short Back Cap
- 3/32" Collet Body, 3/32" Collet, 1/16" Collet, 2.0mm Collet
- Thoriated Tungsten (2.0mm Red)Specifications
- Input Voltage: Single-Phase 110vAC or 220vAC (±15%) @ 50-60Hz
- Input Amperage: 28 amps
- Output Amperage: 10-200 amps AC/DC
- No-Load Voltage: 51
- AC Duty Cycle (%): 20-80 (80% at 100 amps, 20% at 200 amps)
- Post Gas Flow: 2-8 sec.
- Pre Gas Flow: 0.1-1.0 sec.
- Remote Foot Pedal And Control: Yes
- Efficiency: 80%
- Cleaning/clearance effect (AC balance control) is adjustable to provide wider cleaning with shallow penetration to narrow cleaning with deeper penetration. Changing electrode from EN (electrode negative) to EP (electrode positive).
- Frequency is fixed at 60Hz, which provides a little wider bead but with good penetration for aluminum and magnesium.
- Inverter and MOSFET technology offer optimum performance at a very affordable price.
Includes
Part TypeWelder
BrandEXEDY CLUTCH
Package Height11.7
Package Width22.2
Package Length27.8
Weight60.12 PG
Vendor Part Number12746
Package Qty1
Package TypeEA
