JEGS 12681429
easy kits

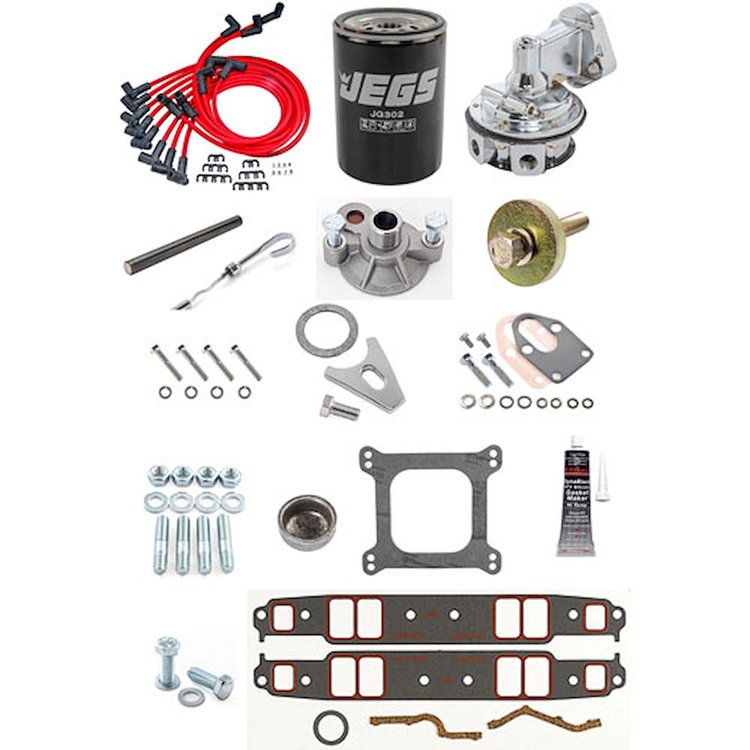

JEGS Small Block Chevy GM Goodwrench 350ci Crate Engine Installation Kit

555-12681429

Free Shipping Ships on 05/28/19

$169.99
$152.99
SAVE $17.00
JEGS Small Block Chevy GM Goodwrench 350ci Crate Engine Installation Kit $152.99
Out of stock
QTY
GM Goodwrench 350 Engine Installation Kit

Items You May Also Consider

JEGS 12681429 Details

Installation Kits

GM Goodwrench 350 Engine Installation Kit Includes:

Free Shipping!

This universal 350 engine uses a brand new block and can be a replacement in most 1973-85 GM vehicles and retrofitted into virtually any vehicle. At a base horsepower of 195, the engine can produce up to 260 HP and 350 ft/lbs torque with a 4-bbl carburetor and headers. The engine is covered by a GM warranty for three years or 100,000 miles in applicable GM vehicles only. JEGS has the GM Goodwrench Chevy 350 for sale at a great price!

Specifications

  • 4-bolt main with a 2-piece rear main seal
  • Nodular iron crankshaft
  • 4.000" bore x 3.480" stroke
  • Internal balance
  • LT1/LT4 powdered metal connecting rods
  • Cast aluminum pistons (dished)
  • 8.5:1 compression ratio
  • Hydraulic flat tappet cam (.383"/.401" Lift, 194 / 202 Duration @ .050", and 112° lobe separation)
  • Cast iron cylinder heads with 76cc chambers
  • 1.940" Intake / 1.500" Exhaust valves
  • 1.250" diameter valve springs
  • 1.5:1 ratio rocker arms
  • 3/8" pressed-in rocker studs
  • Block is compatible with left or right side oil dipstick (plugs for unused side included)
  • 4-quart oil pan
  • Oil pump, oil pump pickup and oil pump drive shaft installed
  • Includes timing tabs for a 6-3/4" or an 8" balancer (balancer not included)
  • Recommended spark plug: 14mm thread, .460" reach, 5/8" hex, tapered seat, projected tip (AC Delco p/n 065-R45TSAutolite p/n 417-144)
  • Requires p/n 809-19299222 or p/n 555-23605 Oil filter adapter (not included)
  • Not Intended for Marine Use
  • No core charge

     JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
