Drop Center Trailing Arm Crossmember for 1963-1972 GM C10 2WD Long Bed Truck
555-64063
Product Q&A
View Now
Items You Need
| Ratings |
|---|
| Price |
| Brand |
Trailing Arm Crossmember

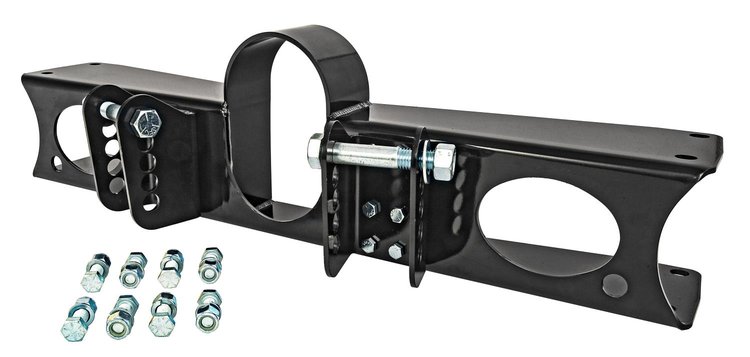

JEGS 64063 Drop Center Trailing Arm Crossmember for 1963-1972 GM C10 Long Bed Truck is a must when lowering your suspension. Made from ¼ in. laser-cut steel plate and incorporates a raised center hoop that eliminates driveshaft interference and two 3 1/4 in. x 5 in. oval cutouts for up to a 3 in. dual exhaust. This unit bolts directly to the stock location and requires no modifications. The trailing arm brackets are precision welded at the correct angle for a perfect alignment with the rear axle housing. We recommend JEGS 555-64064 Trailing Arms to help complete your installation.
Includes:
- (1) Center Drop Trailing Arm Crossmember
- (2) Trailing Arm Attaching Bolts: Grade 8, 3/4 in.-10 x 4 1/2 in. L with a 1 1/8 in. hex head
- (2) Trailing Arm Bolt Washers: Grade 8, 3/4 in. I.D.
- (2) Trailing Arm Bolt Nyloc Nuts: Grade 5, 3/4 in.-10 with a 1 1/8 in. hex head
- (14) Mounting Bolts: Grade 8, 3/8 in.-16 x 1 1/4 in. L with a 9/16 in. hex head
- (28) Mounting Bolt Flat Washers: Grade 8, 3/8 in. I.D.
- (14) Mounting Bolt Lock Washers: Grade 8, 3/8 in. I.D.
- (14) Mounting Bolt Lock Nuts: Grade 8, 3/8 in.-16 with a 9/16 in. hex head
Specifications:
I know it says long wheel base, but will it fit a short bed? I have a 65 c10 shortbed with a 5" drop. Thanks.
How is the carrier bearing supposed to mount? I don’t see any holes for it to mount up.
