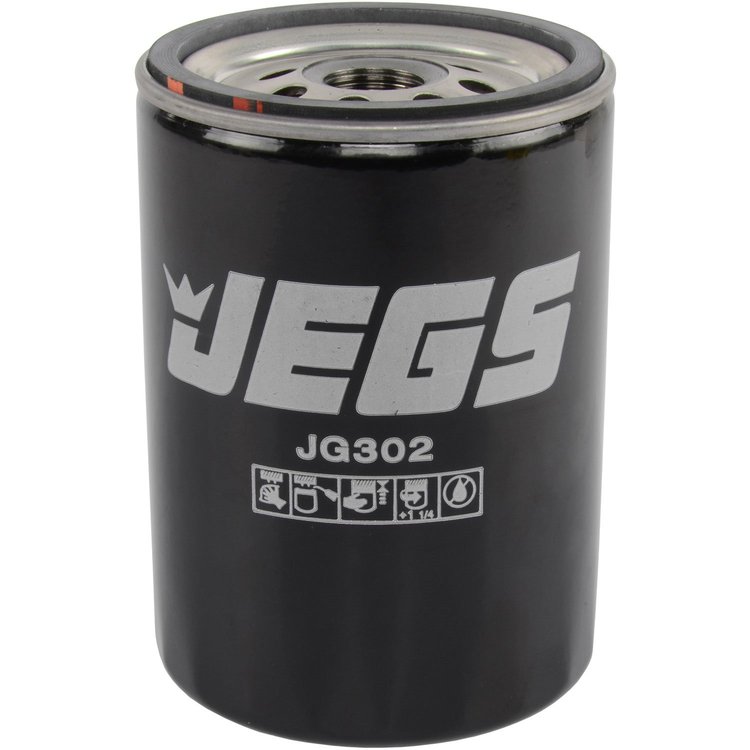

JEGS Performance GM Oil Filter, 5.35 in. High, 13/16"-16 UNF Thread

JEGS JG302

555-JG302

jegs shipping
Ships
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee
$8.99
$5.99
ON SALE - $3.00 OFF
JEGS Performance GM Oil Filter, 5.35 in. High, 13/16"-16 UNF Thread $5.99
Performance Oil Filter
  • 3.65" Dia. x 5.35" L
  • Thread: 13/16"-16 UNF
  • Steel Housing
  • Perforated Steel Core
  • Silicone Anti-Drain Back Valve
  • SB2099 High Performance Filter Media
  • Compatible with Synthetic & Conventional Oil

  • JEGS JG302 Details

    Oil Filter

      Oil Filter Cross Reference
    • AC Delco PF35
    • Champ Labs. PH1218
    • Fram HP4
    • Fram PH13
    • Fram PH5
    • K&N HP-3002
    • Mobil One M1302
    • Moroso 22460
    • Motorcraft FL12
    • Purolator L30040
    • Purolator L34631
    • Purolator L35132
    • WIX 51060
    • WIX 51061

    Specifications:

    Gasket Material
    Nitrile Rubber
    Removal Nut
    No
    Height (in.)
    5.35
    Quantity
    Sold individually
    Anti-Drainback Valve
    Yes
    Filter Bypass Relief Valve
    Yes
    Oil Filter Style
    Canister
    Smallest Particle Filtered
    23 microns
    Removal Nut Size
    N/A
    Maximum Burst Pressure (psi)
    450
    Gasket Thickness (in.)
    0.27
    Inlet Attachment
    N/A
    Inlet Quantity
    N/A
    Inlet Size
    N/A
    Outlet Attachment
    N/A
    Outlet Quantity
    N/A
    Outlet Size
    N/A
    Thread Size
    13/16-16
    Gasket Inside Diameter (in.)
    2.875
    Gasket Outside Diameter (in.)
    3.75
    Outside Diameter (in.)
    3.65
    Shipping Weight:
    1.28
    Package Height:
    3.800
    Package Depth:
    5.600
    Package Width:
    4.000

    JEGS Performance Oil Filters are carefully constructed to fit within the super-premium oil filter market. Filters have a fluted form with the traditional steel endcap design, heavy gauge coil spring, high strength steel back plate and shell. This ultra-strength housing is made for intense racing conditions providing 400-500psi burst strength. A silicone anti-drain back valve prevents dry starts. SB2099 High Performance Media is high flow while providing higher capacity and 99% removal efficiency rate. You can be sure JEGS Oil Filters will outlast and outperform any standard filter.

    Features:

    • Heavy duty racing construction for extreme conditions
    • Perforated steel core
    • Hi-strength steel shell
    • Leak-proof double roll seam
    • High efficiency synthetic filter media traps 99% of harmful contaminants
    • High burst strength construction
    • Anti-drain back valve prevents oil from draining back into crankcase during engine shutdown, thus eliminating dry starts
    • Designed and engineered for today's longer service intervals
    • Compatible with synthetic and conventional oils
    • Fluted shape for traditional oil filter wrenches

    JEGS EZ Kits are designed by JEGS professionals to ensure that you get all the correct parts you need.

    Does JEGS JG302 fit your vehicle?

    Narrow Results
    Filter By
    Year
    Filter By
    Make
    Filter By
    Model
    Filter By
    SubModel
    Filter By
    EngineType
    Filter By
    CC
    Filter By
    Liter
    Filter By
    Aspiration

    1988-1993 GMC C1500 PICKUP

    • Liter: 5.7
    • SubModel: SIERRA
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1979-1980 GMC C1500 PICKUP

    • Liter: 6.6
    • SubModel: HIGH SIERRA
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    2000-2002 CHEVROLET SONORA

    • EngineType: ALL
    • SubModel: ALL

    1978 GMC C25 SUBURBAN

    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1971 CHEVROLET K10 PICKUP

    • CC: 5031
    • Liter: 5.0
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: F
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1979-1980 CHEVROLET K30 PICKUP

    • Liter: 6.6
    • SubModel: SCOTTSDALE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1979-1993 GMC G15/G1500 VAN

    • Liter: 5.0
    • SubModel: RALLY STX
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1996 CHEVROLET G30 VAN

    • EngineType: ALL
    • SubModel: BEAUVILLE

    1999 GMC C2500 PICKUP

    • Liter: 7.4
    • SubModel: SIERRA SLT
    • CUI: 454
    • EngineType: V8 ( 7.4 L / 454 )

    1971-1972 CHEVROLET C10 PICKUP

    • CC: 5736
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1970-1973 GMC C25/C2500 PICKUP

    • CC: 5031
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1983-1984 CHEVROLET G20 VAN

    • CC: 5031
    • Liter: 5.0
    • SubModel: BONAVENTURE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1999 CHEVROLET C1500 SUBURBAN

    • EngineType: ALL
    • SubModel: LT

    1988-1993 GMC K3500 PICKUP

    • Liter: 6.2
    • SubModel: SIERRA SLX
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1979-1982 GMC JIMMY

    • Liter: 5.0
    • SubModel: SIERRA CLASSIC
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1970-1971 CHEVROLET BLAZER

    • CC: 5736
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1988-1993 CHEVROLET C2500 PICKUP

    • Liter: 6.2
    • SubModel: CHEYENNE
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1979 CHEVROLET K10 SUBURBAN

    • Liter: 6.6
    • SubModel: SCOTTSDALE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1980-1982 CHEVROLET BLAZER K5

    • Liter: 5.7
    • SubModel: SILVERADO
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1972 GMC K15/K1500 SUBURBAN

    • Liter: 5.7
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: E
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1990-1995 CHEVROLET G20 VAN

    • Liter: 5.0
    • SubModel: CHEVY VAN
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1994-1995 GMC C2500 PICKUP

    • Liter: 7.4
    • SubModel: SIERRA SL
    • CUI: 454
    • EngineType: V8 ( 7.4 L / 454 )

    1979 CHEVROLET G10 VAN

    • CC: 5031
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1967 CHEVROLET C10 PANEL

    • CC: 4098
    • Liter: 4.1
    • SubModel: BASE
    • CUI: 250
    • EngineType: L6 ( 4.1 L / 250 )

    1970 CHEVROLET BLAZER

    • Liter: 5.0
    • SubModel: BASE
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1987-1988 CHEVROLET V30 PICKUP

    • Liter: 6.2
    • SubModel: SILVERADO
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1984 GMC K2500 SUBURBAN

    • Liter: 6.2
    • SubModel: HIGH SIERRA
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1974 GMC SPRINT

    • Liter: 5.7
    • SubModel: CUSTOM
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1979-1986 GMC K2500 PICKUP

    • Liter: 5.7
    • SubModel: SIERRA CLASSIC
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1975-1978 GMC C25 SUBURBAN

    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1984 GMC C2500 SUBURBAN

    • Liter: 5.0
    • SubModel: SIERRA CLASSIC
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1970 CHEVROLET K10 PICKUP

    • CC: 5031
    • Liter: 5.0
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: A
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1994 CHEVROLET C2500 PICKUP

    • CC: 5735
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1979 GMC JIMMY

    • Liter: 6.6
    • SubModel: SIERRA GRANDE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1987-1988 GMC R3500 PICKUP

    • Liter: 7.4
    • SubModel: BASE
    • CUI: 454
    • EngineType: V8 ( 7.4 L / 454 )

    1979-1980 GMC C1500 SUBURBAN

    • Liter: 7.4
    • SubModel: SIERRA CLASSIC
    • CUI: 454
    • EngineType: V8 ( 7.4 L / 454 )

    1969 GMC K25/K2500 SUBURBAN

    • CC: 6489
    • Liter: 6.5
    • SubModel: BASE
    • CUI: 396
    • EngineType: V8 ( 6.5 L / 396 )

    1982-1986 GMC K3500 PICKUP

    • Liter: 6.2
    • SubModel: HIGH SIERRA
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1988-1990 CHEVROLET C2500 PICKUP

    • CC: 5735
    • Liter: 5.7
    • SubModel: CHEYENNE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1999 CHEVROLET C1500 SUBURBAN

    • Liter: 6.5
    • SubModel: BASE
    • CUI: 395
    • EngineType: V8 ( 6.5 L / 395 )

    1979-1981 CHEVROLET BLAZER K5

    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1970 CHEVROLET C20 PICKUP

    • CC: 5736
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1981-1993 CHEVROLET G10 VAN

    • CC: 5031
    • Liter: 5.0
    • SubModel: SPORTVAN
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1982-1986 CHEVROLET K20 PICKUP

    • Liter: 6.2
    • SubModel: SCOTTSDALE
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1979-1982 GMC C2500 SUBURBAN

    • Liter: 5.7
    • SubModel: SIERRA GRANDE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1970-1972 CHEVROLET P30 VAN

    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1996-1997 GMC YUKON

    • EngineType: ALL
    • SubModel: SL

    1979 CHEVROLET G30 VAN

    • CC: 5031
    • Liter: 5.0
    • SubModel: HI-CUBE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1978-1981 CHEVROLET G20 VAN

    • Liter: 5.7
    • SubModel: NOMAD
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1981 CHEVROLET G20 VAN

    • CC: 5031
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    2001-2003 CHEVROLET C3500 PICKUP

    • EngineType: ALL
    • SubModel: BASE

    1975-1980 CHEVROLET G20 VAN

    • Liter: 6.6
    • SubModel: SPORTVAN
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1982-1986 GMC C3500 PICKUP

    • Liter: 6.2
    • SubModel: SIERRA CLASSIC
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1970 CHEVROLET C20 SUBURBAN

    • CC: 6588
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 402
    • EngineType: V8 ( 6.6 L / 402 )

    1967-1968 GMC C35/C3500 PICKUP

    • CC: 4801
    • Liter: 4.8
    • SubModel: BASE
    • CUI: 292
    • EngineType: L6 ( 4.8 L / 292 )

    1969 CHEVROLET C20 PICKUP

    • CC: 5031
    • Liter: 5.0
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: E
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1987 GMC V1500 PICKUP

    • Liter: 5.7
    • SubModel: HIGH SIERRA
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1992-1998 CHEVROLET K2500 PICKUP

    • Liter: 6.5
    • SubModel: CHEYENNE
    • CUI: 395
    • EngineType: V8 ( 6.5 L / 395 )

    1970-1971 CHEVROLET K10 SUBURBAN

    • CC: 5736
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1994-1997 CHEVROLET K2500 PICKUP

    • Liter: 7.4
    • SubModel: BASE
    • CUI: 454
    • EngineType: V8 ( 7.4 L / 454 )

    1975 GMC G35/G3500 VAN

    • EngineType: ALL
    • SubModel: RALLY

    1971 CHEVROLET C10 SUBURBAN

    • CC: 5736
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1979 CHEVROLET C20 PICKUP

    • CC: 5031
    • Liter: 5.0
    • SubModel: SCOTTSDALE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1970-1971 CHEVROLET K10 PICKUP

    • CC: 5736
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1994-1995 CHEVROLET K1500 PICKUP

    • Liter: 6.5
    • SubModel: CHEYENNE
    • CUI: 395
    • EngineType: V8 ( 6.5 L / 395 )

    1974 GMC C15/C1500 SUBURBAN

    • Liter: 5.7
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: W
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1981 CHEVROLET C20 PICKUP

    • CC: 5031
    • Liter: 5.0
    • SubModel: DELUXE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1976 GMC JIMMY

    • Liter: 7.4
    • SubModel: BASE
    • CUI: 454
    • EngineType: V8 ( 7.4 L / 454 )

    1983-1993 GMC G35/G3500 VAN

    • Liter: 6.2
    • SubModel: VANDURA
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1979-1982 GMC C2500 PICKUP

    • Liter: 5.0
    • SubModel: SIERRA GRANDE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1979 GMC C3500 PICKUP

    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1971 GMC K25/K2500 SUBURBAN

    • Liter: 5.7
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: A
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1966 GMC PB2500 VAN

    • EngineType: ALL
    • SubModel: ALL

    1982-1986 CHEVROLET C30 PICKUP

    • Liter: 6.2
    • SubModel: CUSTOM
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1982-1986 CHEVROLET C10 PICKUP

    • Liter: 6.2
    • SubModel: SILVERADO
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1968 GMC C25/C2500 SUBURBAN

    • CC: 4801
    • Liter: 4.8
    • SubModel: BASE
    • CUI: 292
    • EngineType: L6 ( 4.8 L / 292 )

    1971 CHEVROLET K30 PICKUP

    • CC: 6588
    • Liter: 6.6
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: E
    • CUI: 402
    • EngineType: V8 ( 6.6 L / 402 )

    1979-1980 CHEVROLET K20 PICKUP

    • Liter: 6.6
    • SubModel: SCOTTSDALE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1987-1988 GMC R2500 PICKUP

    • Liter: 7.4
    • SubModel: HIGH SIERRA
    • CUI: 454
    • EngineType: V8 ( 7.4 L / 454 )

    1971 GMC C25/C2500 SUBURBAN

    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1979-1980 CHEVROLET K10 SUBURBAN

    • Liter: 5.7
    • SubModel: SCOTTSDALE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1990-1996 CHEVROLET G30 VAN

    • Liter: 5.7
    • Aspiration: N
    • SubModel: SPORTVAN
    • Engine Vin: K
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1982 GMC JIMMY

    • Liter: 6.2
    • SubModel: STREET COUPE
    • CUI: 379
    • EngineType: V8 ( 6.2 L / 379 )

    1969 CHEVROLET K10 PICKUP

    • CC: 5031
    • Liter: 5.0
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: E
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1980 CHEVROLET C20 PICKUP

    • Liter: 5.0
    • SubModel: CUSTOM DELUXE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1966 STUDEBAKER DAYTONA

    • CC: 3769
    • Liter: 3.8
    • SubModel: BASE
    • CUI: 230
    • EngineType: L6 ( 3.8 L / 230 )

    1964-1965 PONTIAC TEMPEST

    • CC: 3524
    • Liter: 3.5
    • SubModel: BASE
    • CUI: 215
    • EngineType: L6 ( 3.5 L / 215 )

    1996-1997 GMC SAVANA 2500

    • EngineType: ALL
    • SubModel: SLE

    1977-1978 GMC C25 SUBURBAN

    • Liter: 5.0
    • SubModel: BASE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1999 CHEVROLET C2500 PICKUP

    • Liter: 6.5
    • SubModel: BASE
    • CUI: 395
    • EngineType: V8 ( 6.5 L / 395 )

    1987 CHEVROLET V10 PICKUP

    • CC: 5031
    • Liter: 5.0
    • SubModel: SILVERADO
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1980 CHEVROLET G20 VAN

    • Liter: 5.0
    • SubModel: BASE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1981-1995 CHEVROLET G30 VAN

    • Liter: 5.7
    • SubModel: HI-CUBE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1988-1998 GMC K3500 PICKUP

    • Liter: 7.4
    • SubModel: SIERRA SLE
    • CUI: 454
    • EngineType: V8 ( 7.4 L / 454 )

    1975-1980 CHEVROLET G20 VAN

    • Liter: 6.6
    • SubModel: BEAUVILLE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1980 CHEVROLET G10 VAN

    • Liter: 5.0
    • SubModel: CHEVY VAN
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1979-1980 CHEVROLET C20 SUBURBAN

    • Liter: 5.7
    • SubModel: SCOTTSDALE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1974 CHEVROLET K10 PICKUP

    • CC: 5737
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1981-1986 CHEVROLET C10 PICKUP

    • CC: 5031
    • Liter: 5.0
    • SubModel: SILVERADO
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1994 GMC K1500

    • Liter: 6.5
    • SubModel: SIERRA SLT
    • CUI: 395
    • EngineType: V8 ( 6.5 L / 395 )
    JG302 - JEGS Performance Oil Filters is rated 5.0 out of 5 by 1.
    Rated 5 out of 5 by from Excellent product, service and delivery !!! AWESOMENESS !!! Thank you for the AMAZING services !
    Date published: 2017-12-19
    • y_2018, m_8, d_14, h_24
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_1
    • loc_en_US, sid_10001_10001_3598204, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs

    does this filter have a bypass valve?

    Asked by: abfdan
    This has an anti drain back valve,
    Answered by: Rusty B
    Date published: 2018-03-16
    • y_2018, m_8, d_14, h_24CST
    • bvseo_bulk, prod_bvqa, vn_bulk_2.0.8
    • cp_1, bvpage1
    • co_hasquestionsanswers, tq_1
    • loc_en_US, sid_10001_10001_3598204, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs
    Easy Kits
    Items You Need
    Items You May Also Consider
    Some parts are not legal for use in California or other states with similar laws / regulations
