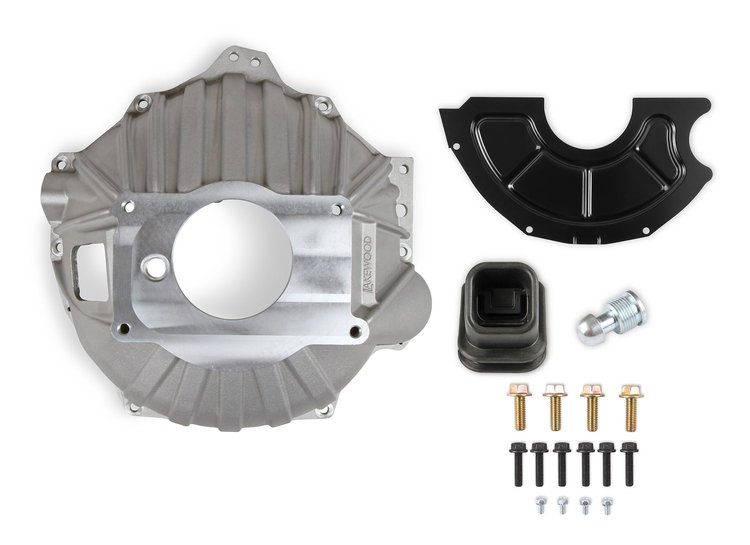

Cast-Aluminum Bellhousing Kit for Small Block Chevy and Big Block Chevy Engines
InfoVehicle Info Needed
LAKEWOODPART NUMBER: 620-LK4000K

Cast-Aluminum Bellhousing Kit for Small Block Chevy and Big Block Chevy Engines

$47795
1 left in stock
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

GM
Cast-Aluminum Bellhousing Kit
  • For Small Block Chevy and Big Block Chevy Engines
  • Standard GM Transmission Bolt Pattern
  • Non-SFI

    Includes:
  • Bellhousing
  • Clutch Fork Boot
  • Inspection Cover
  • Grade 8 Mounting Hardware

    Features:

    • Designed for use with hydraulic and mechanical fork throwout bearing linkage
    • Fits 11 in. clutch disc diameter
    • Fits 153 or 168-tooth flywheel
    • 6.450 in. bellhousing depth
    • 2.125 in. x 3.300 in. clutch fork opening
    • 4.684 in. transmission bore diameter

    Emissions: Legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

      • Strong and Lightweight Bellhousings for Street Applications

      Lakewood Aluminum Bellhousings offer a strong mating point between your engine application and transmission, helping to eliminate drivetrain wear and flex. These bellhousings are lightweight, provide dimensional accuracy and stability, and are the perfect upgrade for street use.

    Part TypeBellhousing
    Product LineLakewood Aluminum Bellhousings
    BrandLAKEWOOD
    Package Height10.0
    Package Width19.0
    Package Length19.0
    Weight18.95 PG
    Part CategoryPerformance Parts
    Bellhousing Depth6.45 in (163.83 mm)
    Clutch Fork IncludedNo
    Bellhousing MaterialAluminum
    Sfi-ApprovedNo
    Clutch OperationHydraulic or GM Mechanical
    QuantitySold individually
    Part FitmentSemi Universal
    Bellhousing Bore Diameter4.684 in (118.974 mm)
    Bellhousing FinishNatural
    Vendor Part NumberLK4000K
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
