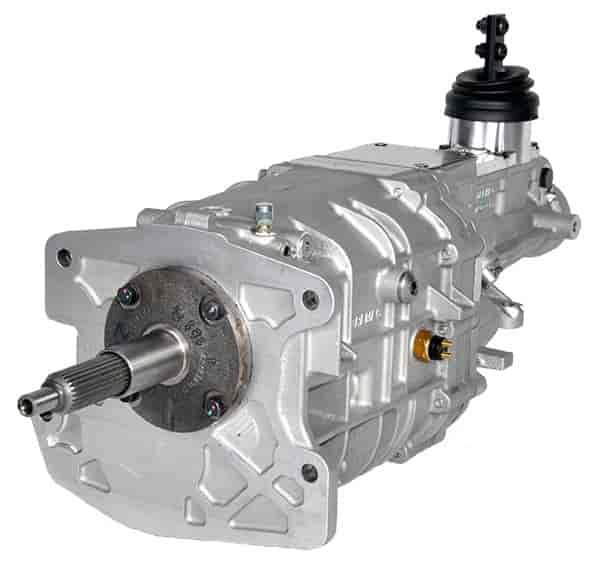

Tremec TKX 5-Speed Manual Transmission GM 1-1/8 in. x 26-Spline

Name: Tremec TKX 5-Speed Manual Transmission GM 1-1/8 in. x 26-Spline
Brand: MCLEOD
SKU: 673-TCET17805
Price: 2895.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Tremec TKX 5-Speed Manual Transmission

GM V8

1-1/8 in. x 26-Spline Input

0.68 5th Gear Ratio

600 ft.-lbs. TQ Rating

Sold Individually

Dimensions

McLeod TCET17805

Features:

Capable of 8,000 RPM engine speeds with shifts at 7,500 RPMs
A compact end-loaded design for clearance in most transmission tunnels without floor modifications
Three-piece aluminum case housing for increased structural stiffness
Gaskets at all flanges to eliminate fluid leaks
Multi-cone synchronizers and hybrid synchronizer rings made from sintered bronze and carbon
Special-grade steel (ASTM 4615) gears and shafts increase the torque carrying capacity
High-performance short-throw billet-aluminum shifter delivers clean, crisp shifts and isolates road noise
Internal three-rail shift system and steel shift forks
Oversized gear widths prolong the gear life
Caged needle bearings in all gear positions
Gear ratios: 1st: 2.87, 2nd: 1.89, 3rd: 1.28, 4th: 1.00, 5th: 0.68, R: 2.56

Tremec Warranty

Your Aftermarket Performance Transmission Solution

Silver Sport Silver Sport Transmissions TKX 5-Speed Manual Transmissions are manufactured with one thing in mind, performance! This new and improved design is more compact and provides clearance in most transmission tunnels without floor modifications. They feature a three-piece aluminum housing, special-grade steel gears and shafts, and multi-cone synchronizers and hybrid synchronizer rings, all of which deliver superior strength and smooth, precise shifting. Available in multiple GM and Ford case patterns and input configurations, and gear ratios.

Part TypeManual Transmission

Product LineSilver Sport Transmissions TKX 5-Speed Manual Transmissions

BrandMCLEOD

Package Height13.5

Package Width18.0

Package Length34.0

Weight114.0 PG

Part CategoryPerformance Parts

Fourth Gear Ratio1.00:1

Fifth Gear Ratio0.68:1

Number Of GearsFive

Second Gear Ratio1.89:1
