Mopar Performance P4510628

Mopar Performance Stage 3 Coilover Suspension Kit 2003-06 PT Cruiser Turbo

312-P4510628

Free Shipping Ships on 03/26/19

$1,753.99
Mopar Performance Stage 3 Coilover Suspension Kit 2003-06 PT Cruiser Turbo $1,753.99
Out of stock
QTY

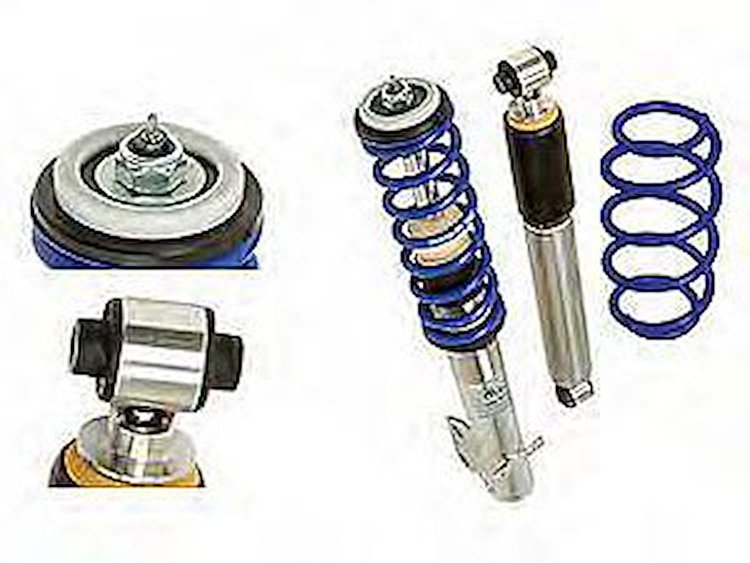

Stage 3 Coilover Suspension Kit
  • 2003-06 PT Cruiser Turbo
  • Complete Vehicle Set
  • Mopar Performance P4510628 Details

    PT Cruiser

    The Mopar Stage 3 Coilover Suspension Kit features INOX stainless steel technology exclusive to Mopar and KW Suspensions. After 418 hours of testing (salt water spray), INOX Coilover Suspension Struts constructed of stainless steel were clearly superior to the galvanized versions in terms of corrosive resistance, and they were still functioning perfectly after testing.

    The Stage 3 Suspension Kits include all of the same features of the Stage 2 Kits. In addition, the Stage 3 Kit allows drivers to adjust the damper setting of the suspension system for the ultimate in personalization. The adjustable rebound damper gives drivers the ability to adjust the vehicle's pitch and roll to their driving preferences and needs, from the street to the track. The Stage 3 Kit is height adjustable and rebound adjustable from 20% under to 50% over Stage 2 settings. Rebound adjustment takes place via an adjustment screw at the end of the piston rod, and primarily affects the low and midrance rebound dampening.

    Features
  • External Adjustable Rebound Damper
  • Stock Height & Down Lowering Range
  • Easy-Adjust Stainless Steel Impregnated Composite Perches
  • High-Quality, High-Tensile Racing Springs
  • Special Ventilation & Sealing System
  • Hardened Chromium-Plated Piston Rods
  • Pistons with V-Shaped PTFE Seals
  • Strut Housings in INOX-Line Stainless Steel
  • Infinitely Adjustable Within Adjustment Parameters
  • Shortened Struts for Increased Travel
  • Trapezoidal Adjustment Threads for Simple Height Adjustment
  • Elastomer Bump-Stops with Integrated Dust Boot Protection

  • Specifications:

    Manufacturer's Part Number:
    P4510628

    The Mopar Stage 3 Coilover Suspension Kit feature front and rear coil-over shocks or struts & springs.
