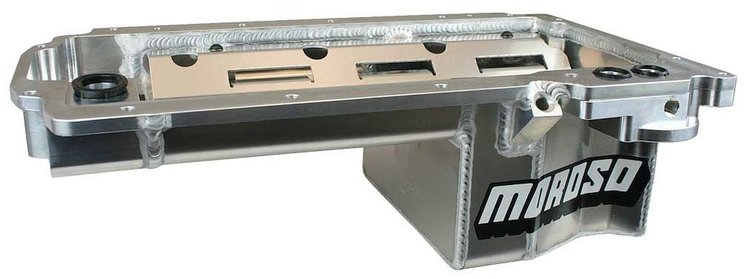

Dimensions for Moroso 21148

Features:

• Includes (1) billet aluminum spin-on oil filter adapter with a 1/4 in. N.P.T. sensor port
• Thick billet aluminum O-ringed rail that features a removable pickup, a billet front sump, and a location to mount the billet aluminum spin-on oil filter adapter
• Race-proven diamond-shaped four-trap door assembly
• Removable windage tray
• Anti-slosh baffle to keep oil contained within the oil pump pickup area
• Will fit the following applications - check dimensions for clearance
  • 1967-1992, and select late-model Chevy Camaro
  • 1968-1978 Chevy Nova
  • 1965-1972 Chevy Chevelle
  • 1978-1988 GM G-Body
  • GM S10/S15 Blazer and Pickup Truck 2WD

Notes:

• The oil filter adapter accepts a 22 mm thread spin-on oil filter - use Moroso 710-22463 or OEM-style
• The oil dipstick bung is designed to be used with GM part # 12652951 (dipstick tube) and # 12643278 (dipstick)
