Vehicle Info NeededQA1PART NUMBER: 122-GS401-10400B

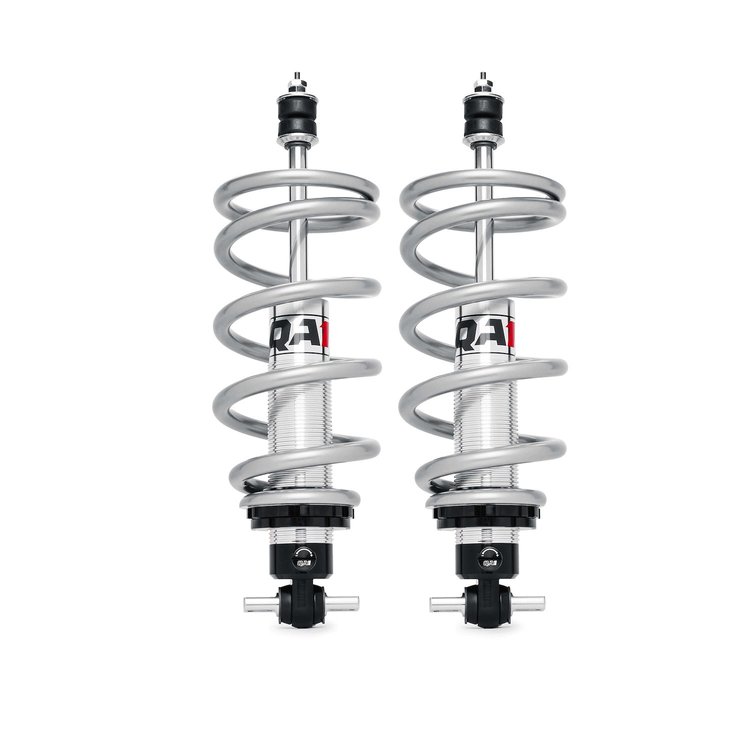

Pro Coil Front Coil-Over System Single Adjustable Shock
$74995
3 left in stock
Ships Tomorrow
Lowest Price GuaranteeSpring Style ''B''1968-1972 Chevelle / Malibu / El Camino 1970-1972 Monte Carlo 1968-1972 Skylark (including GS) 1968-1972 Cutlass / 442 / F85 1968-1972 GTO / Tempest / LeMans
- Pro Coil Front Coil-Over System
- Single Adjustable Shock
- 9'' Compressed / 12.8'' Extended Shock Height
- 10'' Spring Free Length
- 1801-1900 lbs. Front End Weight
- 400 lbs/in. Spring Rate
Features: - Simultaneous compression and rebound adjustment on one knob
- 18 valving options
- Perfect for comfortable street driving or the firm handling of a more modern sports carShock Mount Type:
- Stud Type Upper Mount
- T-Bar Type Lower Mount
*Notes: Some front applications may require the lower a-arm to be dropped for installation. Body diameter may be too large to allow mounting from the bottom. Some control arm's shock openings may need to be enlarged to accept a QA1 shock.
Stud mounts are measured to the shoulder of the stud. Add 13/16' for installed compressed length per stud mount. Loops and t-bars are measured to the center of the loop. Lengths may vary slightly.
Part TypeCoilover Spring and Shock Assembly
BrandQA1
Package Height8.4
Package Width10.1
Package Length21.3
Weight19.35 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Number Of Valving Selections18
Gas ChargedNo
Crossmember IncludedNo
Bushing ColorBlack
Suspension Height Adjustment (In.)0.0-2.0 lowered front
Lower MountTie bar
Shock Body FinishClear anodized
Shock Body MaterialAluminum
Body Diameter2 in (50.8 mm)
Extended Length12.8 in (325.12 mm)
Coil-Over Springs IncludedYes
Spring Rate400 lbs./in.
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Recommended Front-End Weight1,801-1,900 lbs
Spring FinishSilver powdercoated
Welding RequiredNo
QuantitySold as a kit
Coil-Over Kit PositionFront
Upper MountStud
Shocks IncludedYes
Threaded Adjustment Range4.5 in (114.3 mm)
Part FitmentSemi Universal
Collapsed Length9 in (228.6 mm)
Vendor Part NumberGS401-10400B
Package Qty1
Package TypeEA
