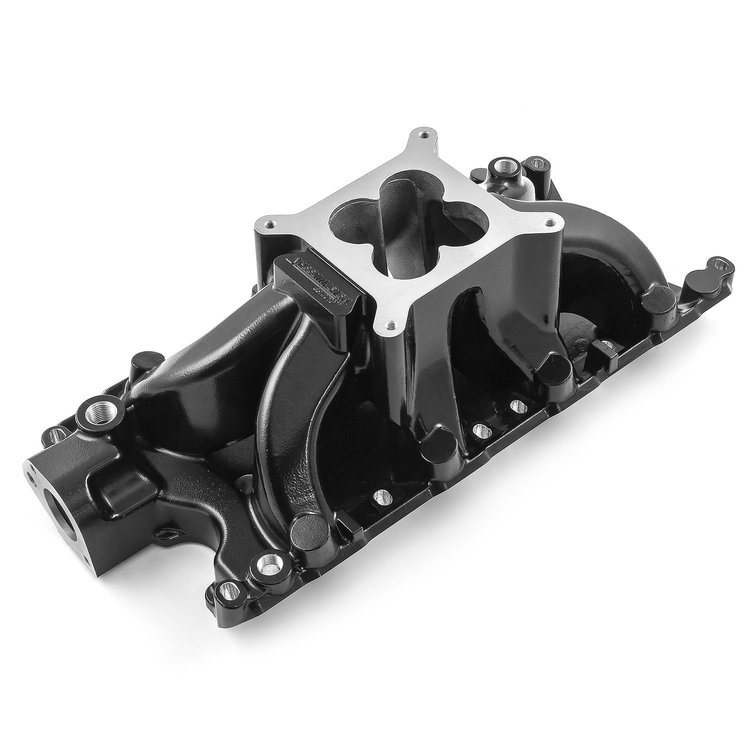

HiRise Intake Manifold Small Block Ford 260, 289, 302 Windsor - Black Finish
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-1-147-060

HiRise Intake Manifold Small Block Ford 260, 289, 302 Windsor - Black Finish

$33300
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Small Block Ford
HiRise Intake Manifold
  • Small Block Ford 260, 289, 302 Windsor
  • Parker Style
  • Single Plane
  • Height: 5.500 in
  • Non-EGR
  • RPM Range: 3,500-8,000
  • Cast Aluminum
  • Black Finish

    This Speedmaster 1-147-060 Parker-Style High-Rise Intake Manifold has a Funnelweb feature with longer and larger runners that produce an effect that is similar to a tapered 4-hole spacer. When coupled with the long runners, the radiused plenum edge creates a stronger signal that holds on to the low and mid-range without limiting top-end power.

    Features:

    • Funnelweb with Longer, Larger Runners
    • Stronger Signal
    • High-Grade Aluminum Casting
    • 4150/4160 Flange
    • Bosses for Injectors or Nitrous (Machining Required)

    Note:

    • No Rear Water Crossover

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeIntake Manifold
    BrandSPEEDMASTER
    Package Height7.9
    Package Width10.3
    Package Length22.8
    Weight20.2 PG
    Part CategoryPerformance Parts
    EgrWithout EGR
    Intake MaterialCast Aluminum
    Intake StyleSingle plane
    Rpm Range3500-8000
    QuantitySold individually
    Intake FinishBlack
    Carburetor QuantityOne
    Part FitmentSemi Universal
    Engine Make/SizeFord Small Block
    Vendor Part Number1-147-060
    Package Qty1
    Package TypeEA
