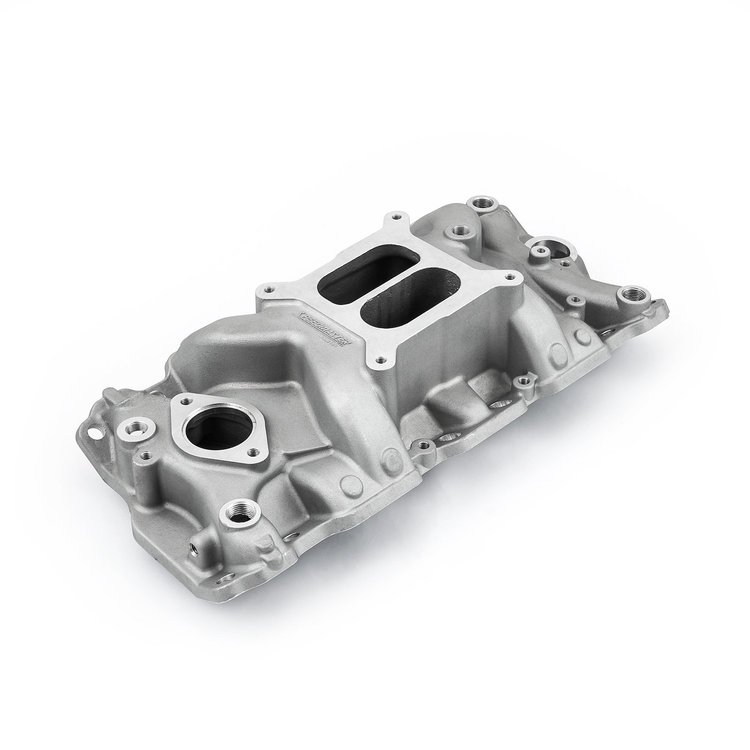

LowRise-Plus Intake Manifold 1957-1995 Small Block Chevy 350 - Satin Finish
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-1-147-079

LowRise-Plus Intake Manifold 1957-1995 Small Block Chevy 350 - Satin Finish

$28500
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
LowRise-Plus Intake Manifold
  • 1957-1995 Small Block Chevy 350
  • Height: 4.750 in.
  • Dual-Plane
  • Non-EGR
  • RPM Range: Idle-5,500
  • Aluminum
  • Satin Finish

    1-147-079 Features:

    • Includes (8) bushings for 1987-1995 iron cylinder heads, (1) distributor gasket, (5) pipe plug fittings, and (12) stainless mounting bolts
    • Large intake ports and runners keep air and fuel distribution even for maximum performance and efficiency
    • Square bore carburetor flange
    • Precision-casted nitrous bosses for adding port nitrous injectors
    • Rear water crossover passages for more balanced cylinder head temperatures

    Note:

    • The LowRise-Plus manifold is slightly taller than typical Speedmaster LowRise intake manifolds

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • Low-Profile, Street-Legal Intake Manifolds

      LowRise series intake manifolds by Speedmaster deliver a low profile for ultimate underhood clearance. These manifolds provide a perfect balance between top-end horsepower and low-end torque with their long-runner, dual-plane design, giving you the best of both worlds. Every Speedmaster intake is pressure tested to provide confident, superior performance.

    Part TypeIntake Manifold
    Product LineSpeedmaster LowRise Intake Manifolds
    BrandSPEEDMASTER
    Package Height6.5
    Package Width12.0
    Package Length23.0
    Weight20.0 PG
    Part CategoryPerformance Parts
    Engine Block StyleStock/OEM standard deck
    Intake MaterialAluminum
    Supplemental Bosses Cast-InYes
    Intake StyleDual plane
    Gasket Or Seal IncludedYes
    QuantitySold individually
    Mounting Hardware IncludedYes
    Intake FinishSatin
    Carburetor QuantityOne
    Engine Make/SizeChevy Small Block
    EgrNo
    Fittings IncludedYes
    Rpm Range0-5,500
    Part FitmentSemi Universal
    Manifold TypeLow Rise
    Intake Manifold Height4.750 in.
    Vendor Part Number1-147-079
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
