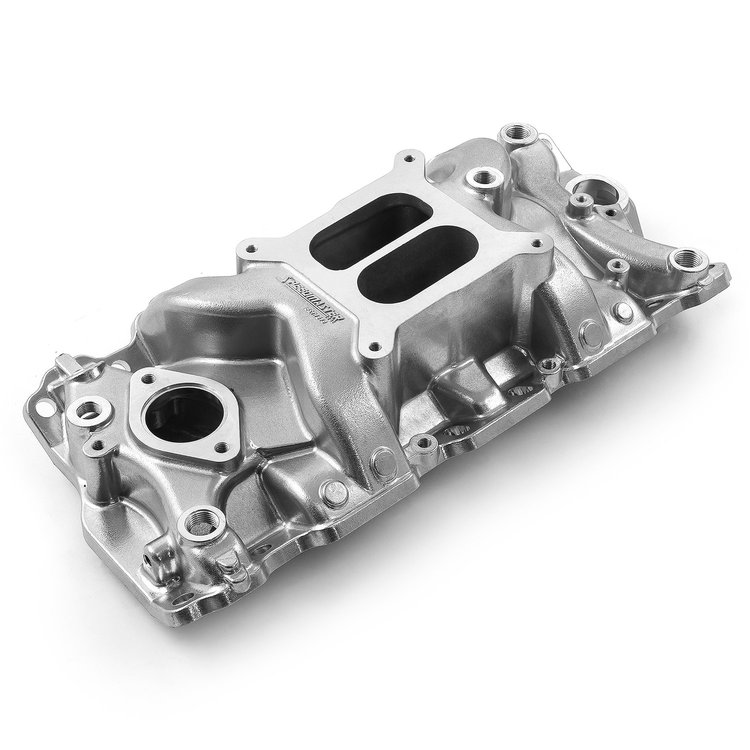

LowRise-Plus Intake Manifold 1957-1995 Small Block Chevy 350 - Machine Polished
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-1-147-080

LowRise-Plus Intake Manifold 1957-1995 Small Block Chevy 350 - Machine Polished

$30600
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy
LowRise-Plus Intake Manifold
  • 1957-1995 Small Block Chevy 350
  • Height: 4.750 in.
  • Dual-Plane
  • Non-EGR
  • RPM Range: Idle-5,500
  • Aluminum
  • Machine Polished Finish

    1-147-080 Features:

    • Includes (8) bushings for 1987-1995 iron cylinder heads, (1) distributor gasket, (5) pipe plug fittings, and (12) stainless mounting bolts
    • Large intake ports and runners keep air and fuel distribution even for maximum performance and efficiency
    • Square bore carburetor flange
    • Precision-casted nitrous bosses for adding port nitrous injectors
    • Rear water crossover passages for more balanced cylinder head temperatures

    Note:

    • The LowRise-Plus manifold is slightly taller than typical Speedmaster LowRise intake manifolds

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeIntake Manifold
    BrandSPEEDMASTER
    Package Height6.5
    Package Width12.0
    Package Length23.0
    Weight19.2 PG
    Part CategoryPerformance Parts
    Engine Block StyleStock/OEM standard deck
    Intake MaterialAluminum
    Supplemental Bosses Cast-InYes
    Intake StyleDual plane
    Gasket Or Seal IncludedYes
    QuantitySold individually
    Mounting Hardware IncludedYes
    Intake FinishMachine Polished
    Carburetor QuantityOne
    Engine Make/SizeChevy Small Block
    EgrNo
    Fittings IncludedYes
    Rpm Range0-5,500
    Part FitmentSemi Universal
    Manifold TypeLow Rise
    Intake Manifold Height4.750 in.
    Vendor Part Number1-147-080
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
