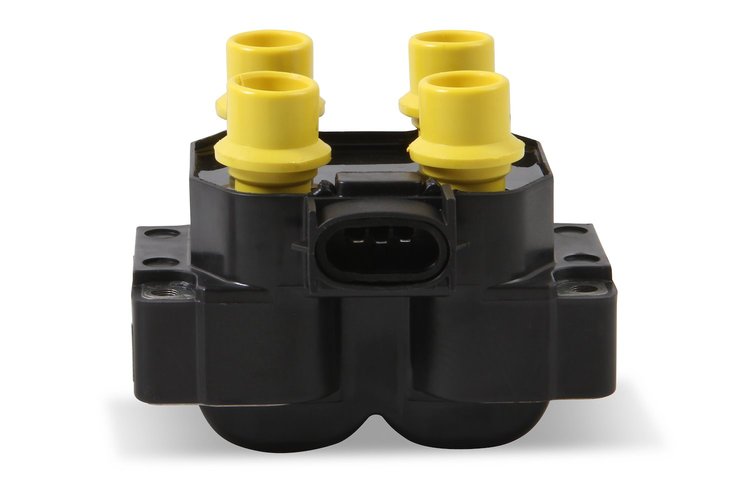

Vehicle Info NeededFord Super EDIS Coil Pack 1989-99 Ford V8 & 4-Cylinder
Ships on Nov 02, 2026
Lowest Price Guarantee- Ford Super EDIS Coil Pack
- 1989-99 Ford V8 & 4-Cylinder
- Super Coil Ignition Coil
- Silicon Magnetic Steel Core
- Higher Energy/Voltage Outputs
- Bolt-In Plug-In Replacement
- Resist Shock And Vibration
- Increase Thermal Conductivity
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

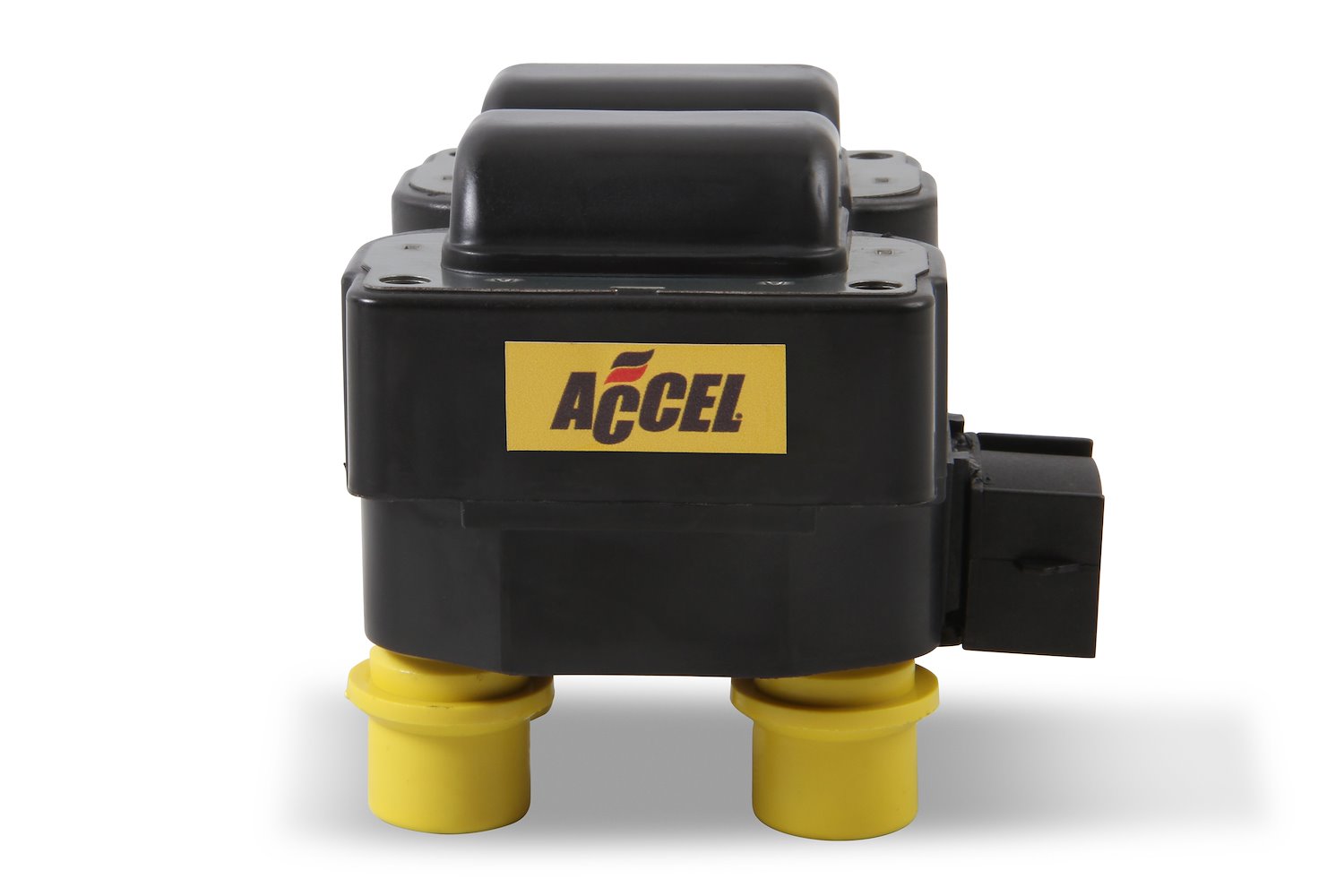

Reengineered to be a true performance
Ford 4-tower style EDIS ignition coil
Accel 1989-99 Ford Super EDIS Coil features advanced bobbin technology, highly specialized silicone magnetic steel core, optimized winding, resistance, and turns ratio which results in higher energy and voltage outputs, and longer arc duration. Direct OEM replacement. Must use factory firing order. Compatible with Ford EDIS computer controlled ignition system as well as Crane or MSD capacitive discharged (CD) DIS ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Secondary towers molded in high dielectric strength Accel Yellow.
Show More
Packaged as single unit; 4-cylinders require one (1) coil pack, ''twin plug'' 4-cylinders require two (2) coil packs. 8-cylinders require two (2) coil packs. Not suitable for some late 1999 applications.
Specifications:
- Maximum Voltage: 42,000 Volts
- Primary Resistance: 0.5 Ohms
- Secondary Resistance: 11.6k Ohms
- Turns Ratio: 85:1
- Peak Increase in Energy over OE: 11%
- Peak Increase in Voltage over OE: 8%
- Peak Increase in Current over OE: 9%
- Peak Increase in Arc Duration over OE: 7%
