Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Universal

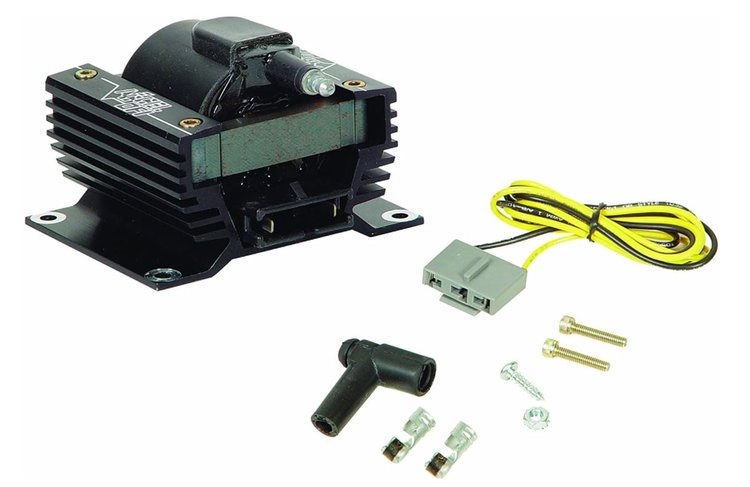

AccuPower E-Core Ignition CoilUniversal Male/HEI 51,000 V 0.500 ohms Remote-Mount Black Finish Sold Individually
Features:
- Ideal for street applications with points ignitions and OE electronic ignition systems
- Increased spark duration and throttle response
- Faster rise times
- Extruded aluminum mount to dissipate heat
- Plug-and-play wiring connector
- Effective to 8,000 RPM when used with Accel/DFI 6A ignition and Dual Sync Distributor
Part TypeIgnition Coil
BrandACCEL
Package Height4.5
Package Width4.5
Package Length7.0
Weight2.76 PG
Part CategoryPerformance Parts
Primary Resistance0.500 ohms
Coil Wire AttachmentMale/HEI
Coil StyleE-core
Connector GenderFemale
QuantitySold individually
Mounting Hardware IncludedYes
Ballast Resistor IncludedNo
Maximum Voltage51,000 V
Turns Ratio99:01:00
Peak Current260 mA
Coil ShapeSquare
Mounting Bracket IncludedYes
Inductance5.6 mH
Coil ColorBlack
Terminal GenderMale
Mounting PositionRemote
Coil Wire IncludedNo
Spark Duration250 uS
Terminal Quantity1
Secondary Resistance8.9K ohms
Coil TypeExternal
Coil Internal ConstructionEpoxy
Package Qty1
Package TypeEA
