Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

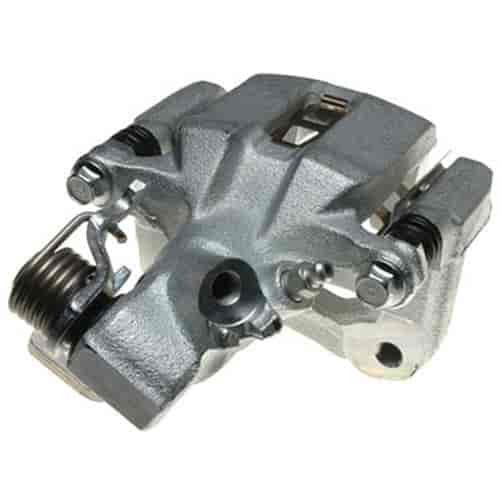

- CALIPER ASM RR BRK W/0 BR
Part TypeDisc Brake Caliper
BrandACDELCO
Package Height1.0
Package Width6.0
Package Length40.0
Weight6.5
Caliper Piston Quantity2
Pad Wear Sensor IncludedNo
Caliper TypeIntegral Parking Brake
Piston 1 Diameter1.3
Disc Brake Caliper Casting MaterialCast Iron
Good Maintenance Practices - Section 1 - Bullet 1Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations.
Good Maintenance Practices - Section 1 - Bullet 4Check the thickness of your brake pads.
Good Maintenance Practices - Section 1 - Bullet 2Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required.
Inlet Fitting TypeFemale
Good Maintenance Practices - Section 1 - Bullet 3Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary).
Product DescriptionACDelco Gold (Professional) Remanufactured Friction Ready Disc Brake Calipers are the high quality alternative to Original Equipment (OE) parts. They use both aluminum and iron castings. These loaded calipers contain Ethylene Propylene (EPDM) rubber components to provide superior resistance to heat, corrosion, and leakage. ACDelco Professional Remanufactured Friction Ready Disc Brake Calipers are developed without attached brake pads, allowing customization for the application at hand. Bleeder screws, copper sealing washers, hardware, and mounting brackets are all included for easy installation. Remanufacturing disc brake calipers is an automotive industry practice that involves disassembly of existing units, and replacing components that are most prone to wear with new components. Damaged and obsolete parts are replaced and are end of line tested to ensure they perform to ACDelco specifications. In addition, remanufacturing returns components back into service rather than processing as scrap or simply disposing of them. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Casting MaterialCast Iron
Width (In)6
Inlet Thread Diameter (Mm)10
New Or RemanufacturedRemanufactured
Bleeder Screw Thread Diameter (Mm)10
Inlet Thread Diameter0.394
New Or RemanufacturedRemanufactured
Piston 1 Diameter (In)1.3in
Piston 2 Diameter (Mm)55.88mm
Grade TypePerformance
Length (In)40
Caliper Slides IncludedYes
Piston Quantity2
Part CategoryReplacement Parts
Good Maintenance Practices - Section 2 - Bullet 3Inspection of wheel bearings and grease seals.
Good Maintenance Practices - Section 2 - Bullet 4Parking brake adjustments (as needed).
Programming RequiredNo
Pads IncludedNo
Inlet Thread Diameter (In)0.394
Good Maintenance Practices - Section 2 - Bullet 1Inspection of the brake hoses for brittleness or cracking.
Good Maintenance Practices - Section 2 - Bullet 2Inspection of brake lining and pads for wear or contamination by brake fluid or grease.
Good Maintenance Practices - Section 2 - HeaderThe following should be conducted by a qualified technician:
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Vehicle pulls to the left or right when brakes are applied.
Piston 1 Diameter (Mm)33mm
Mounting Bolt Thread Pitch (Mm)1.250
Bleeder Thread DiameterM10x1.25
Mounting Bracket IncludedYes
Faq - Answer 3No, but it is a good idea to inspect them at every tire rotation.
Mounting Hole Diameter10
Faq - Answer 2Yes, ACDelco also offers GM OE disc brake calipers.
Faq - Answer 1No, but it is a good idea to inspect them for wear-out, cracking, leaking etc.
Features &#38; Benefits - Bullet 2Cast iron and aluminum specifications; no extra stress on the brake boosting mounting
Features &#38; Benefits - Bullet 3Developed without attached brake pads for customization
FinishPlain
Features &#38; Benefits - Bullet 1Pressure tested to ensure safe and confident braking
Good Maintenance Practices - Section 1 - HeaderThe following inspections and maintenance procedures can help prevent potential brake problems:
Caliper ColorNatural
Mounting Hardware IncludedYes
Height (In)1
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Brake pedal pulsation (not to be confused with normal ABS operation).
Faq - Question 3Do I have to replace my disc brake calipers after a certain amount of time?
Faq - Question 2Does ACDelco offer other grades of disc brake calipers?
Faq - Question 1Do I have to replace all my brake parts when replacing my disc brake calipers?
Vendor Part Number18FR2265
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
