Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

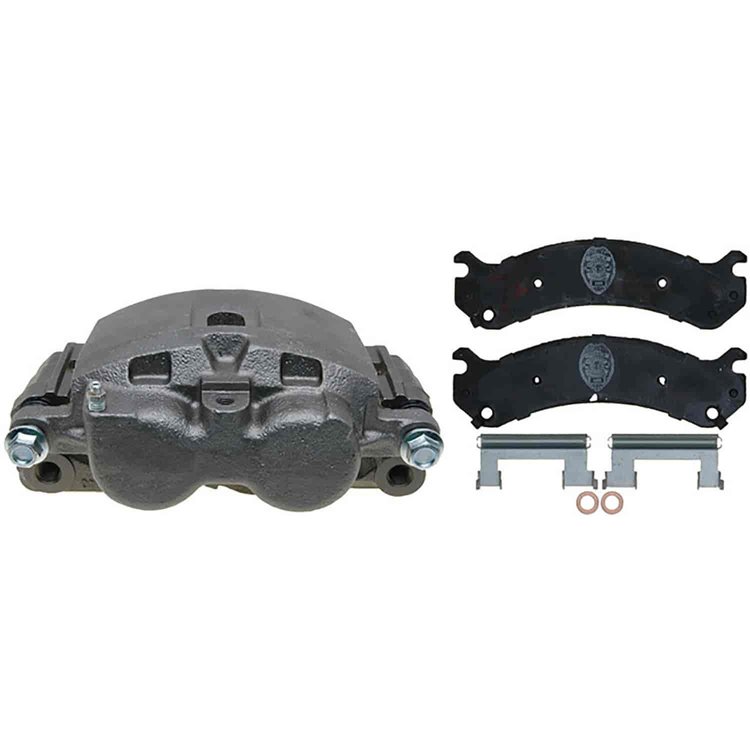

- CALIPER ASM FRT BRK W/ BR
Part TypeDisc Brake Caliper
BrandACDELCO
Package Height5.9
Package Width11.0
Package Length12.9
Weight25
Caliper Piston Quantity2
Pad Wear Sensor IncludedYes
Caliper TypeFloating
Piston 1 Diameter2.3
Disc Brake Caliper Casting MaterialCast Iron
Good Maintenance Practices - Section 1 - Bullet 1Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations.
Good Maintenance Practices - Section 1 - Bullet 4Check the thickness of your brake pads.
Good Maintenance Practices - Section 1 - Bullet 2Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required.
Inlet Fitting TypeFemale
Good Maintenance Practices - Section 1 - Bullet 3Inspect the brake lines for rust, punctures or visible leaks (You may be able to do this, but consult a qualified technician if necessary).
Piston 2 Diameter2.3
Product DescriptionACDelco Specialty Performance (Fleet/Police) Remanufactured Loaded Disc Brake Calipers use both aluminum and iron castings for the best match to the original equipment design. Remanufacturing disc brake calipers is an automotive industry practice that involves disassembly of existing units, and replacing components that are most prone to wear with new components. Damaged and obsolete parts are replaced and are end of line tested to ensure they perform to ACDelco specifications. In addition, remanufacturing returns components back into service rather than processing as scrap or simply disposing of them. These loaded calipers contain high temperature silicone components to provide superior resistance to heat, withstanding temperatures up to 600 degrees Fahrenheit (316 degrees Celsius), while protecting against corrosion and leakage. ACDelco Specialty Performance (Fleet/Police) Remanufactured Loaded Disc Brake Calipers are developed with brake pads already attached - no assembly required. Also included are bleeder screws, copper sealing washers, hardware, and mounting brackets for easy installation. These disc brake calipers will provide the same performance, durability, and service life you expect from ACDelco. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Casting MaterialCast Iron
Width (In)11
Inlet Thread Diameter (Mm)10
Bleeder Screw Thread Diameter (Mm)10
New Or RemanufacturedRemanufactured
Inlet Thread Diameter0.394
Piston 1 Diameter (In)2.3in
New Or RemanufacturedRemanufactured
Piston 2 Diameter (Mm)58.4mm
Length (In)12.9
Caliper Slides IncludedYes
Grade TypePerformance
Piston Quantity2
Part CategoryReplacement Parts
Good Maintenance Practices - Section 2 - Bullet 3Inspection of wheel bearings and grease seals.
Good Maintenance Practices - Section 2 - Bullet 4Parking brake adjustments (as needed).
Programming RequiredNo
Pads IncludedYes
Inlet Thread Diameter (In)0.394
Good Maintenance Practices - Section 2 - Bullet 1Inspection of the brake hoses for brittleness or cracking.
Good Maintenance Practices - Section 2 - Bullet 2Inspection of brake lining and pads for wear or contamination by brake fluid or grease.
Good Maintenance Practices - Section 2 - HeaderThe following should be conducted by a qualified technician:
Piston 2 Diameter (In)2.3in
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Braking which causes the pedal and/or steering wheel to pulsate/vibrate (not to be confused with normal ABS operation).
Piston 1 Diameter (Mm)58.4mm
Mounting Bolt Thread Pitch (Mm)2.000
Bleeder Thread DiameterM10x1.5
Mounting Bracket IncludedYes
Faq - Answer 3No, but it is a good idea to inspect them at every tire rotation.
Mounting Hole Diameter16
Faq - Answer 2Yes, ACDelco offers GM OE disc brake calipers as well.
Faq - Answer 1No, but it is a good idea to inspect them for wear-out, cracking, leaking etc.
Friction MaterialMetallic
Features &#38; Benefits - Bullet 2Slotted and chamfered to optimize cooling and reduce noise
Features &#38; Benefits - Bullet 3Noise damping shims included for quiet braking
Features &#38; Benefits - Bullet 4Pre-lubed and loaded with quality friction pads for smooth operation
FinishPlain
Features &#38; Benefits - Bullet 1Police-specific formulations to avoid high temperature fade
Friction Material CompositionMetallic
Good Maintenance Practices - Section 1 - HeaderThe following inspections and maintenance procedures can help prevent potential brake problems:
Caliper ColorNatural
Mounting Hardware IncludedYes
Height (In)5.9
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Vehicle pulls to the left or right when brakes are applied.
Faq - Question 3Do I have to replace my disc brake calipers after a certain amount of time?
Faq - Question 2Does ACDelco offer other grades of disc brake calipers?
Faq - Question 1Do I have to replace all my brake parts when replacing my disc brake calipers?
Vendor Part Number18R1380SV
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
