Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

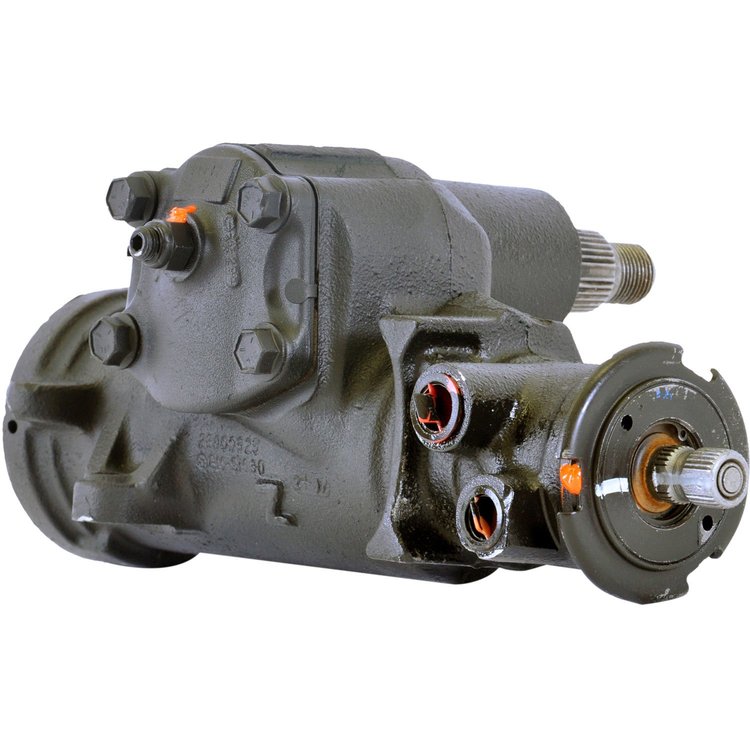

- GEAR KIT STRG REMAN
Part TypeSteering Box
BrandACDELCO
Package Height7.2
Package Width9.7
Package Length15.5
Part CategoryReplacement Parts
Power AssistedYes
Port 1 Thread Diameter (In)0.709in
Programming RequiredNo
Port 2 Thread Diameter (Mm)16mm
Mounting Hole Quantity3
Total Turns Lock To Lock3
Faq - Answer 4Yes. Use of the incorrect fluid may damage the vehicle, and the damages may not be covered by the vehicle or component's warranty. Always use the correct fluid listed in the manufacturer's service literature.
Good Maintenance Practices - Section 1 - Bullet 1Check power steering fluid levels periodically and add fluid when necessary.
Faq - Answer 3Yes. The power steering fluid should be flushed whenever a component is being replaced or the system has become contaminated.
Faq - Answer 2No. You will be able to steer your vehicle if the power steering goes out, but it will require more effort, especially at lower speeds. If your power steering goes out, have the system inspected and repaired as soon as possible.
Faq - Answer 1No. It is not necessary to regularly check power steering fluid unless there is a leak suspected in the system or an unusual noise is heard. A fluid loss in this system could indicate a problem. Have the system inspected and repaired. Always reference your vehicle's service information for appropriate maintenance intervals.
Good Maintenance Practices - Section 1 - Bullet 4It is a good idea to replace O-rings when doing any steering system service.
Good Maintenance Practices - Section 1 - Bullet 5Always check the specific manufacturer’s service information for the correct power steering fluid to use. Different fluids are specified by manufacturers to meet the operating requirements of their power steering systems. On some modern steering systems, brake fluids or transmission fluids may not be compatible with pump components. U sing the wrong fluid could cause hose and seal damage as well as fluid leaks.
Good Maintenance Practices - Section 1 - Bullet 2Have your vehicle inspected if it exhibits any of the following symptoms: unusual noise when turning the steering wheel, a shimmy or shake in the steering wheel, heavy or unresponsive steering at low speeds or during parking lot maneuvers, and/or the steering wheel does not return to center properly.
Good Maintenance Practices - Section 1 - Bullet 3If you live in areas that experience harsh winter weather, have the entire steering system inspected before winter arrives to help ensure safer driving.
Features & Benefits - Bullet 2Multiple cleaning and washing stations, with regular contamination audits, for every component inside the rack and pinion minimize internal contamination and increase part service life
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Features & Benefits - Bullet 3All seals and O-rings are replaced with 100% new parts to extend the life of the product, helping to guarantee reliability
Features & Benefits - Bullet 4Sealing surfaces are restored and polished to maximize sealing and help ensure long service life
Input Shaft Diameter0.72
Features & Benefits - Bullet 5Recirculating bearings are replaced with new and matched sets to provide correct steering feel and performance
Product DescriptionACDelco Professional Remanufactured Steering Gear Kits are premium aftermarket replacement components that connect to the steering wheel shaft and a series of linkages and arms to provide steady and consistent turning of the front wheels. Remanufacturing steering gears is an industry standard practice that involves disassembly of existing units, and replacing components that are most prone to wear with new components. Damaged and obsolete parts are replaced and are end of line tested to ensure they perform to ACDelco specifications. In addition, remanufacturing returns components back into service rather than processing as scrap or simply disposing of them. These steering gear kits will provide the same performance, durability, and service life you expect from ACDelco. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Output Shaft Spline Quantity32
Input Shaft Spline Quantity26
Features &#38; Benefits - Bullet 1Gear housings are bead blasted, thoroughly washed, closely inspected, and rust-proofed prior to assembly to minimize corrosion
Output Shaft Diameter31.75
Port 2 Thread Diameter (In)0.63in
Good Maintenance Practices - Section 1 - Bullet 6Keep in mind that fluid color is not an indication of fluid condition.
Port 1 Thread Diameter (Mm)18mm
Good Maintenance Practices - Section 1 - Bullet 7After any service of the power steering system, always bleed the air from the system and verify proper system operation. An accurate fluid level cannot be obtained unless air is bled from the steering system. The air in the fluid may cause pump cavitation noise as well as pump damage over a period of time.
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Power steering fluid
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5Fluid contamination
Faq - Question 4Can using the incorrect power steering fluid cause damage to my power steering system?
Faq - Question 3Should my power steering system be flushed every time it undergoes maintenance or component replacement?
Faq - Question 2Will I be unable to steer my vehicle if my power steering goes out?
Faq - Question 1Do I need to change my power steering fluid regularly, even if there are no symptoms of problems with the system?
Vendor Part Number36G0132
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
